Product Description

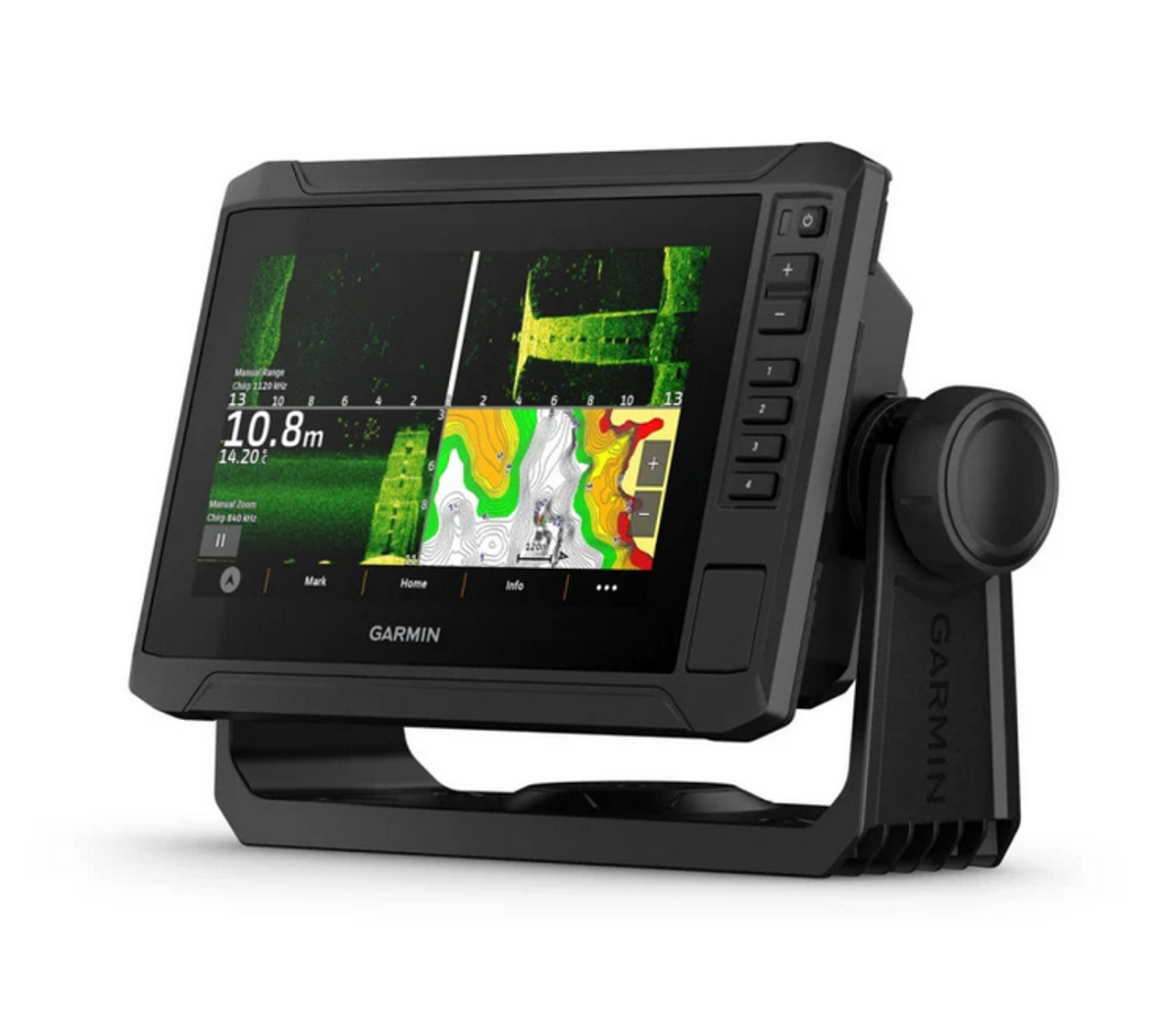

When it comes to catching more fish, they say, “Talk to a local.” With the ECHOMAP UHD2 chartplotter, which offers our best-in-class sonar and mapping and premium touchscreen display with keyed-assist, you’ll know the water even better than they do.
-
The bright 6”, 7” or 9” touchscreen display with keyed-assist is user-friendly and easy to read
-

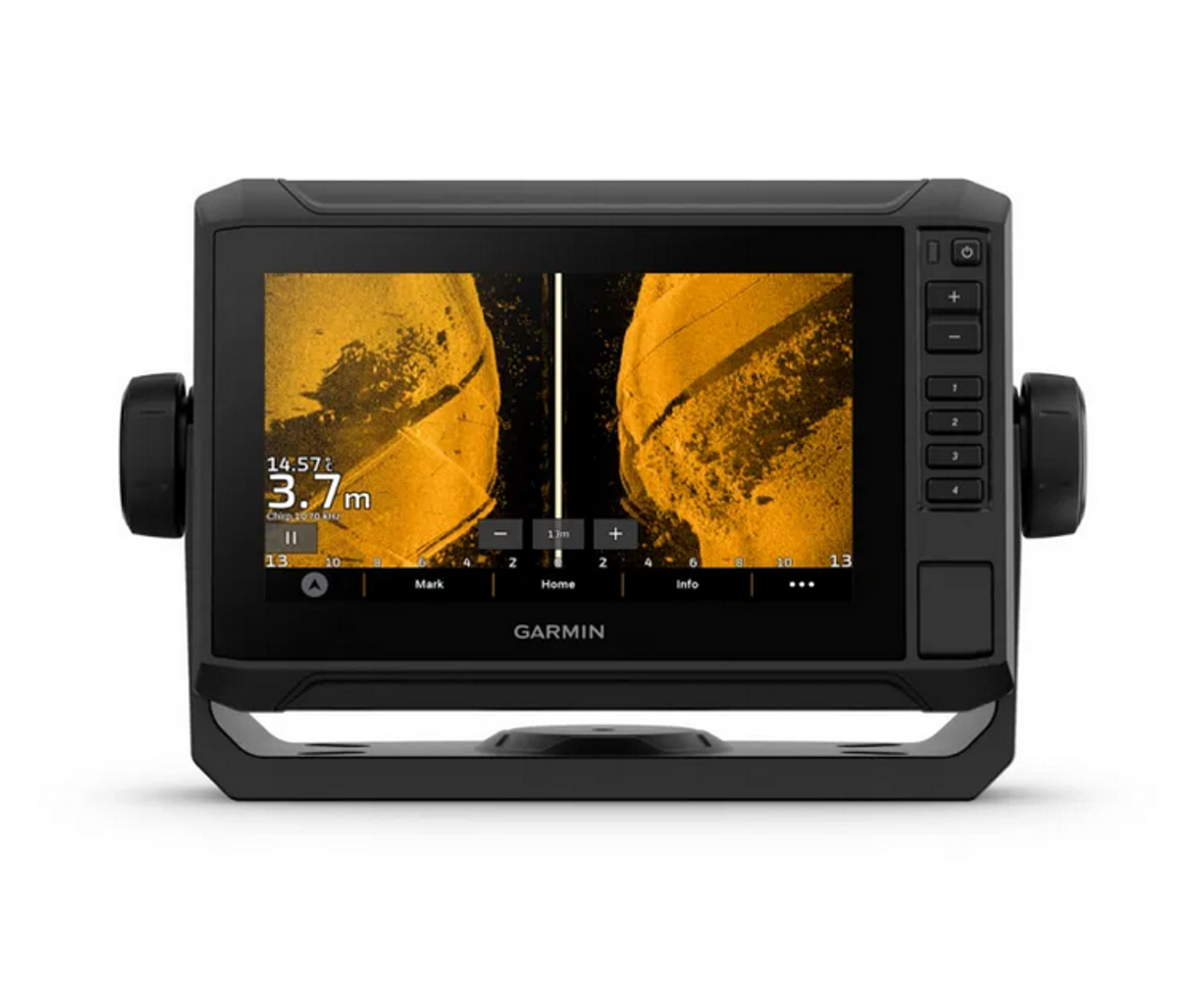

Good things come in threes. Three sonar types, that is: Garmin traditional, ClearVü and SideVü sonars
-
Improved detail? Check. Distinguished targets? Yep. That’s the beauty of high-contrast vivid color palettes
-
If you’re running another ECHOMAP UHD2 chartplotter, you can wirelessly share sonar, waypoints and routes
-
Want our best in mapping? Who doesn’t? Select chartplotters come with Garmin Navionics+ mapping
Specifications:
- Dimension: 8.6" x 5.6" x 3.2"
- Weight: 2.2 lbs (1.0 kg)
- IPX7 Waterproof
- Touchscreen
- Display Type: WVGA, TN
- Display Size: 6.1" x 3.4", 7.0"
- Display Resolution: 800 x 480 pixels
- Mounting Options: Bail or flush
- Input: Touchscreen with Keyed Assist
- Accepts Data Cards: 1 microSD card; 32 GB maximum size
- Waypoints: 5,000
- Track points: 50,000
- Tracks: 50 saved tracks
- Navigation Routes: 100
- GPS Sensor
- GLONASS Sensor
- Galileo Sensor
- BeiDou Sensor
- Has built-in receiver
- Receiver: 10 Hz
- NMEA 2000 Compatible
- Supports WAAS
- Supports multi-band, multi-constellation GPS
- Built-in Auto Guidance+
- Built-in Garmin Navionics+ Inland & Coastal
- Built-in Garmin Navionics+ (Coastal)
- Built-in Garmin Navionics+ (Inland)
- Built-in Tide tables
- Power Input: 9 to 18 Vdc
- Typical current draw at 12 Vdc: 1.52 A
- Maximum current draw at 12 Vdc: 3.2 A
- Maximum power usage at 10 Vdc: 18.3W
- Displays sonar
- Power output: 500 W
- Traditional sonar (dual frequency/beam): built-in (single channel CHIRP, 50/77/83/200 kHz, L, M, H CHIRP)
- ClearVü: built-in 260/ 455/ 800/ 1000/ 1200 kHz
- SideVü: built-in 260/ 455/ 800/ 1000/ 1200 kHz
- Panoptix sonar
- LiveScope Sonar
