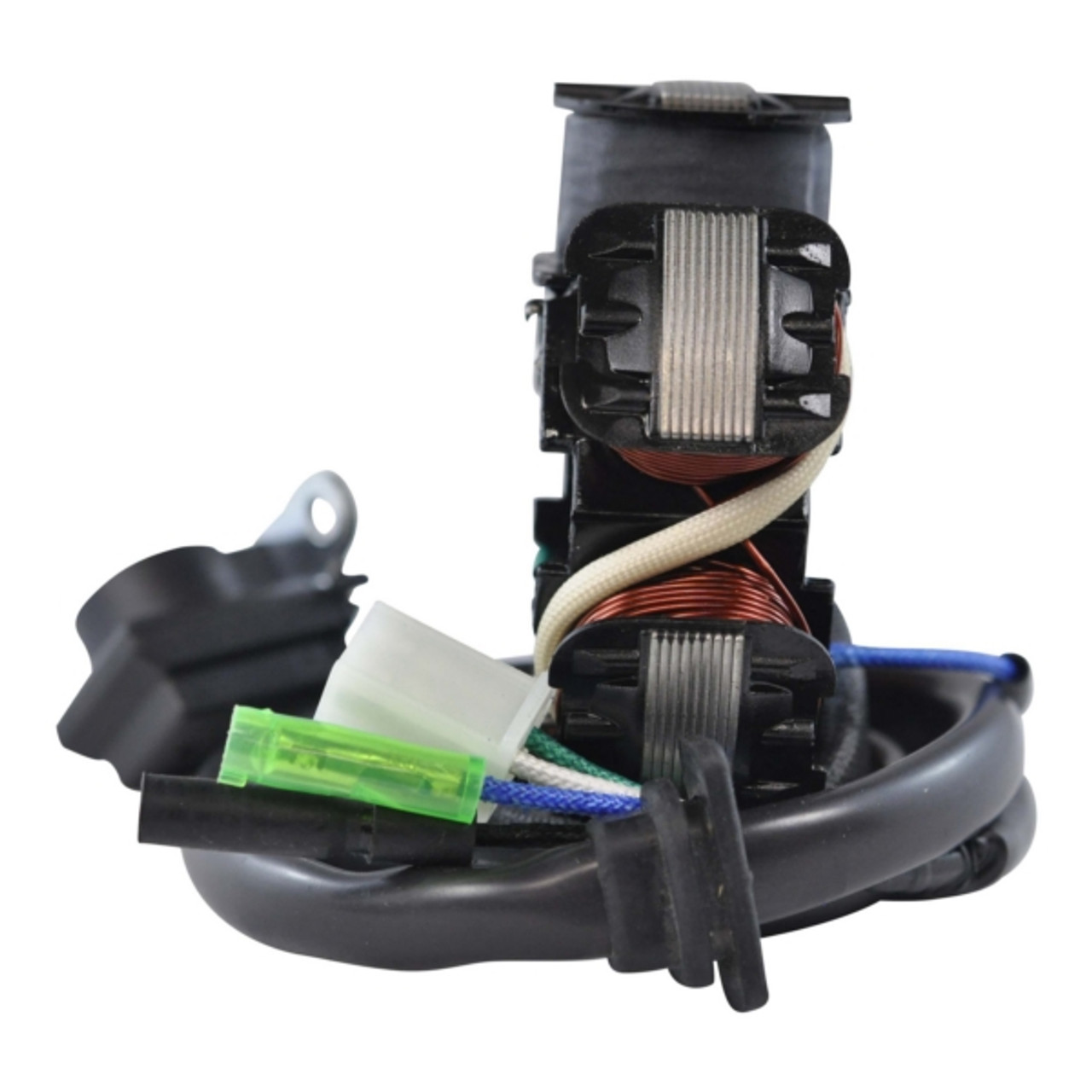

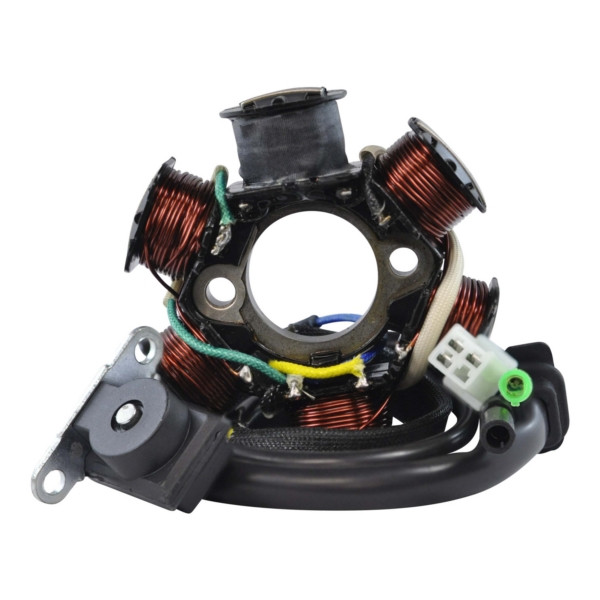

Name: Kimpex HD Stator CAN-AM (BRP) - 285007 - 285007
Brand: KimpexHD
SKU: 285007
Price: 133.19 CAD
Availability: InStock

Overview
Reviews

Product Description

Direct replacement to your original unit
Plug-and-play, direct fit, easy installation
Highest grade lamination materials
Highest grade copper windings, resistant to 200 degrees Celsius

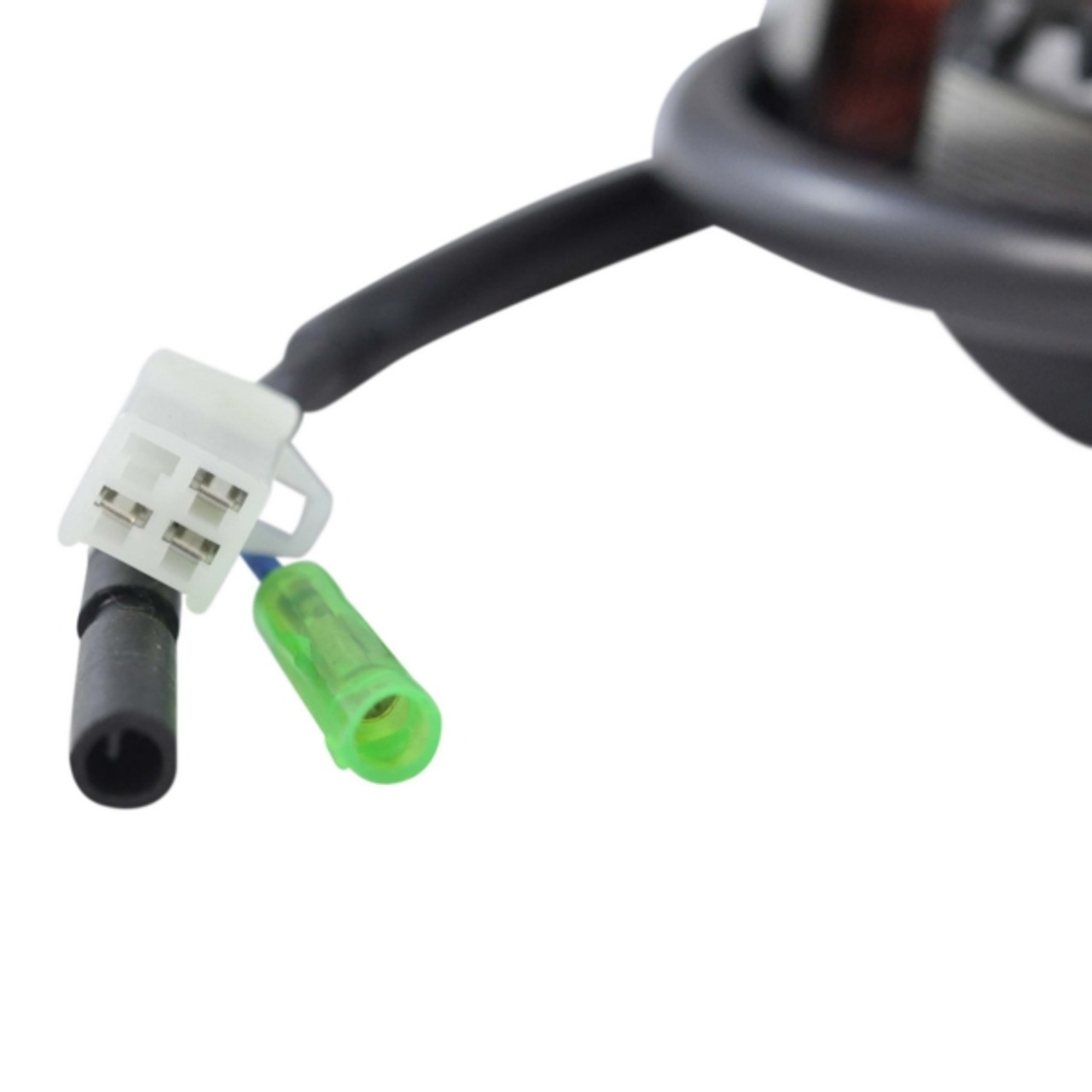

Connector included
Rubber grommet included
All products shipped are tested

Note: Battery condition is extremely important. No stator can work correctly with a bad or weak battery. Always fully charge your battery before performing any charging system tests or replacing parts. If there is any doubt, have the battery load tested or replaced.

Kimpex Data:

Barcode: 779420190720
Supplier Number: RM01288
Kimpex Catalog Number: 285007

Product Data:

Compatible Brand: CAN-AM (BRP)
Internal Diameter (mm): 28
External Diameter (mm): 82
Thickness (mm): 9
Number of wires: 5
Number of connectors: 2
Number of terminals: 5
Notes: N/A
Number: 285007

Product Videos

Custom Field

Compatible Brand Fits Arctic cat

Internal Diameter (mm) 28

External Diameter (mm) 82

Thickness (mm) 9

Number of wires 5

Number of connectors 2

Number of terminals 5

Notes N/A

Number 285007

Kimpex-Category ATV (9E)

Make CAN-AM (BRP)

Model DS90 Automatic

Model DS90 X

Year 2023

Model DS70

Year 2022

Year 2021

Year 2020

Year 2019

Year 2018

Year 2017

Model DS90 4 Stroke Automatic

Year 2016

Year 2015

Year 2014

Year 2013

Year 2012

Year 2011

Year 2010

Year 2009

Year 2008
