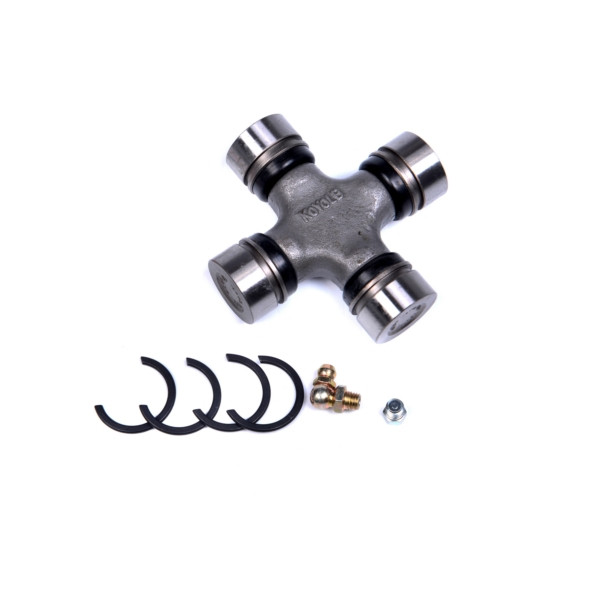

Product Description
- U Joints are cold forged from SCM-415 steel, precision ground journals are case hardened to HRC58-61
- U Joints are pre greased with hi-temp Lithium Complex 3 grease.
- Bearing cups feature a Quad lip seal to keep contamination out and grease in.
- Centrally located grease zerk and grease channels in bearing cup evenly distribute grease.
- Kits include cap plug to eliminate grease zerk for low clearance applications.
- Honda Yoke assemblies have upgraded cross diameters from 17mm to 19mm.
- Honda yoke assemblies feature stainless steel clamps and hi quality neoprene rubber boots for long life and abrasion resistance.
Kimpex Data:
- Barcode: 779420805471
- Supplier Number: 19-1011-KIMP
- Kimpex Catalog Number: 327365
Product Data:
- Tip length: 1"
- Total length: 2.38"
- Zerk: Yes
- Snap ring included: Yes
- Compatible Brand: POLARIS

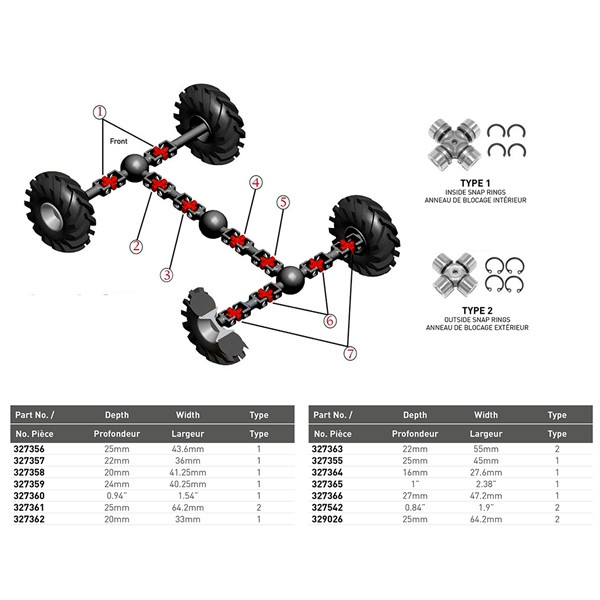

- Chart Position: Front
- Chart Position: Rear Inner
- Model number: 19-1011-KIMP
Product Videos
Custom Field
Tip length 1"
Total length 2.38"
Zerk Yes
Snap ring included Yes
Position Varies by model
Model number 19-1011-KIMP
Kimpex-Category ATV (9E)
Kimpex-Category ATV (9E)
Make POLARIS
Model Xplorer 500 4X4 4 stroke
Model Worker 335
Year 1999
Model Xplorer 250 4X4 2 stroke
Year 2000
Model Sportsman 500 6x6
Model Sportsman 500 4x4
Year 1996
Year 1998
Year 1997
Model Sportsman 335 4x4
Model Diesel 455 4x4
Model Xplorer 500 4X4
