Product Description

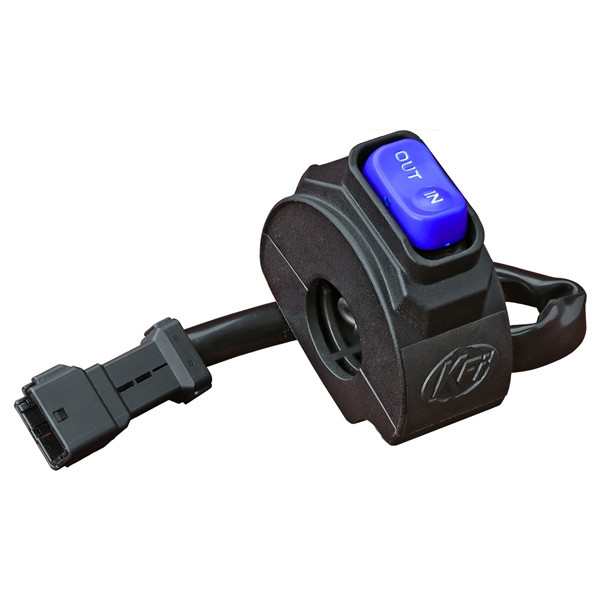

Kit Includes:- Rocker Switch to control your electric winch.
- Complete Wire Harness with Plug
Specifications:
- Easy wiring installation.
- Will work with most brands of ATV and UTV winches on the market with the standard electrical contactor.
- Blue LED illuminated when your key is turned on to allow you to see at night.
- Circuit Type (ON)-OFF-(ON).
- Double pole switch. This mean two contact points instead of just one for better repeatability operation.
- Requires mounting hole 0.830” x 1.450”. (Standard on most UTV’s)
- Works with panel thickness ranging from .030” to .250” thick.
- Max current rating: 20A 12VDC and 15A 24VDC.
- Silver plated terminals.
- Requires standard ATV winch contactor to control winch.
- See below wiring schematic.
Kimpex Data:
- Barcode: 779421845919
- Supplier Number: AP-CMR
- Kimpex Catalog Number: 218415
Product Data:
- Switch type: Rocker
- Number: 218415
