Product Description

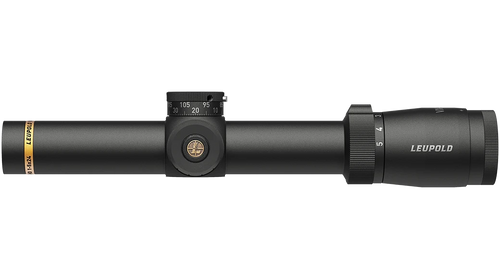

Don't let its small size fool you. This scope is big game ready. At only 13.4 ounces, our VX®-5HD 1-5x24mm riflescope is built for long days in the wilderness. But we didn't stop there; its 1-5x magnification range, rugged construction, and clear glass make it a great choice for competition or tactical shooters, as well. Plus, with our proprietary Firedot® illumination you get a bright, intuitive aiming point that won't get lost in low-light conditions.
The VX-5HD defines relentless versatility. Its wide magnification ranges give hunters and shooters the ability to adapt to any environment. Built around Leupold’s Professional-Grade Optical System, it offers unmatched light transmission that’s designed to outperform in the most challenging lighting conditions. Its industry leading glare reduction provides a clear image in harsh, direct light, while the resolution and clarity will meet the demands of any professional guide or shooter in the field. And when it’s time to pull the trigger, you’ll want the accuracy and additional elevation that the CDS® ZeroLock® 2 dial delivers.
As the lightest, most rugged 5:1 riflescope in its class, your VX-5HD will never slow you down. It's 100% waterproof and fogproof. And like all Leupold® riflescopes, it's designed, machined, and assembled in the USA and guaranteed for life.
- Brings new technology to a classic design
- Fiber-optic powered red dot
- Multiple brightness settings for changing conditions
- FireDot® Technology brings your eye to the center of the reticle for quick target acquisition
- Broad range of shooting applications
- Rear (second) focal plane
SPECIFICATIONS
- Finish: Matte
- Adjustable Objective: No
- Side Focus: No

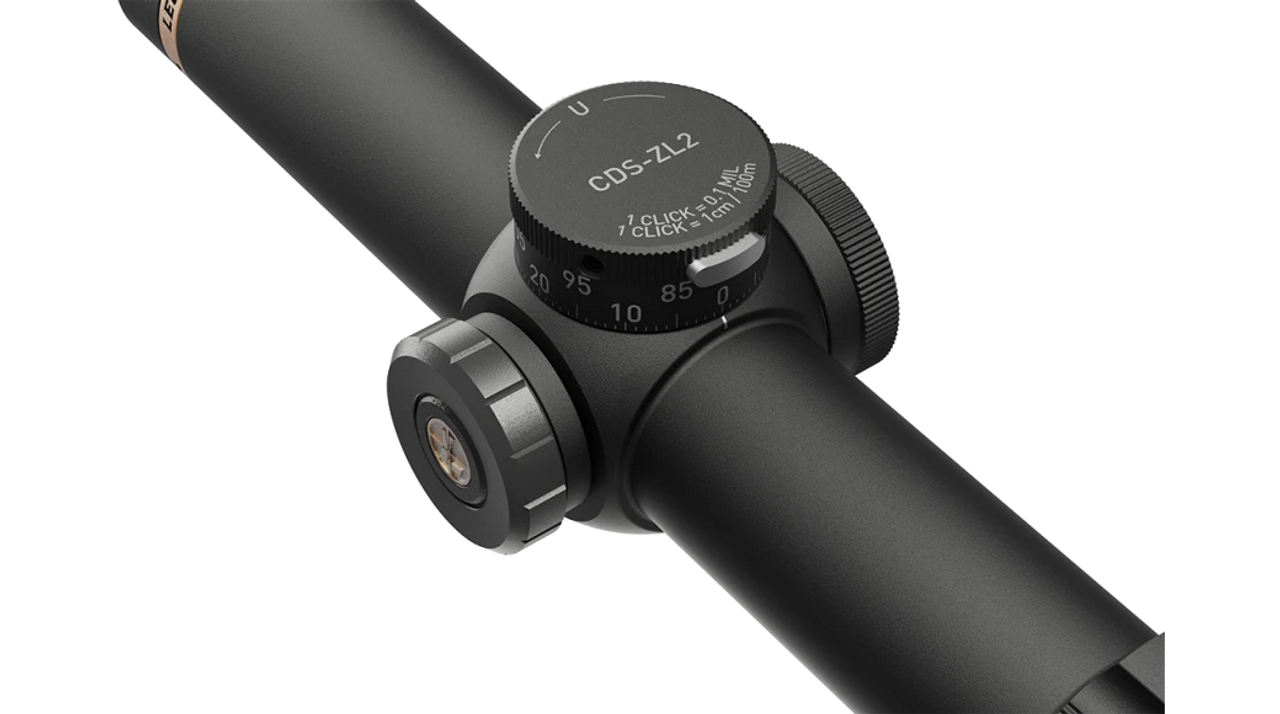

- Elevation Adjustment Type: CDS-ZL2
- Locking Dial: Yes
- Revolution Indicator: Yes
- Re-zero Type: Set Screw
- Windage Adjustment Type: Pop-Up Re-Zero
- Custom Dial Compatible: Yes
- Reticle Type: Illuminated
- Reticle: Illuminated FireDot Duplex
- Magnification Type: Variable
- Battery Type: CR2032
- Switch Type: Push Button
- Daylight Bright Illumination: Yes
- Weight (oz): 14.7
- Elevation Adjustment Value per Click: 1/4 MOA
- Elevation Adjustment Range (MOA): 170
- Elevation Adjustment Range (MIL): 49
- Elevation Adjustment Range (cm @ 100m):495
- Elevation Adjustment Per Revolution: 20 MOA
- Elevation Dial Travel Limit: 38 MOA
- Windage Adjustment Value per Click: 1/4 MOA
- Windage Adjustment Range (MIL): 49
- Windage Adjustment Range (cm @ 100m): 495
- Windage Adjustment Per Revolution: 15 MOA
- Magnification Max: 5
- Magnification Min: 1
- Objective Lens Diameter (mm): 24
- Linear FOV Low Mag (ft@100yds): 120.9
- Linear FOV High Mag (ft@100yds): 22
- Angular FOV Low Mag (Degrees): 22.8
- Angular FOV High Mag (Degrees): 7.7
- Eye Relief Low Mag (in): 3.7
- Eye Relief High Mag (in) : 3.8
- Fixed Parallax-Free Distance (yd): 150
- Battery Life (hr), Low Intensity: 1600
- Battery Life (hr), Medium Intensity: 1000
- Battery Life (hr), High Intensity: 300
- Number of Illum Settings: 8
