  • All Balls Universal Joint - 207356
  • All Balls Universal Joint - 207356

    • All Balls Universal Joint - 207356

    AllBallsRacing

    $48.48
    (No reviews yet) Write a Review
    SKU:
    207356
    UPC:
    779422628467
    Adding to cart… category.add_cart_announcement

    Product Description

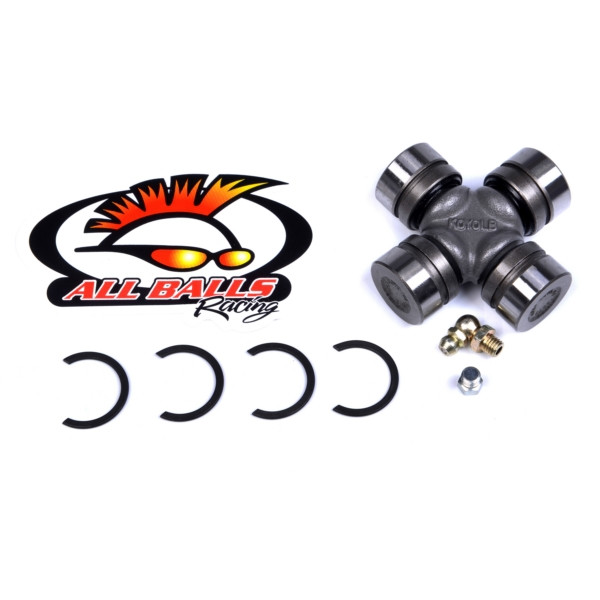

    • U Joints are cold forged from SCM-415 steel, precision ground journals are case hardened to HRC58-61
    • U Joints are pre greased with hi-temp Lithium Complex 3 grease.
    • Bearing cups feature a Quad lip seal to keep contamination out and grease in.
    • Centrally located grease zerk and grease channels in bearing cup evenly distribute grease.
    • Kits include cap plug to eliminate grease zerk for low clearance applications.
    • Honda Yoke assemblies have upgraded cross diameters from 17mm to 19mm.
    • Honda yoke assemblies feature stainless steel clamps and hi quality neoprene rubber boots for long life and abrasion resistance.
    Notes for utility Models:

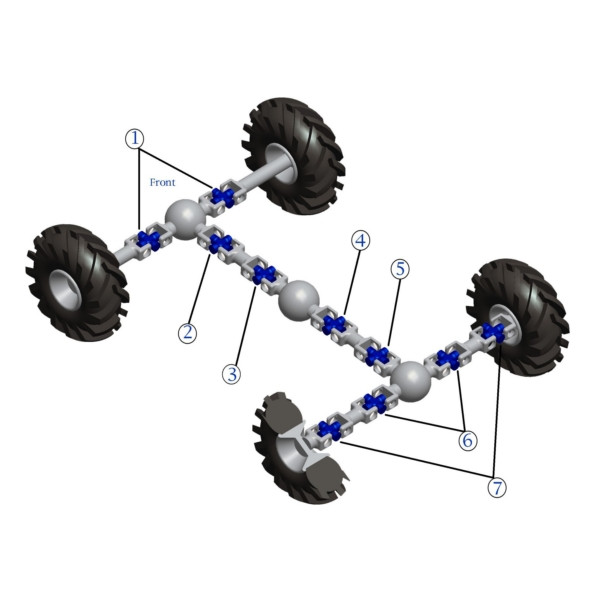

  • A) Six Wheel vehicules middle drive shaft use the same U-Joints as rear drive Shaft (Location 4 & 5)
  • B) Middle axle use the same U-Joints as rear axle (Location 6 & 7)
  • C) Utility vehicules with middle U-Joints on front drive shaft use same U-Joints as front (Location 2)
    • In order to know the exact position of every joint made for your ATV model, refer to the charter in Kimpex ATV & UTV online catalog at the Axles & Universal CV Boots section.

    Kimpex Data:
    • Barcode: 779422628467
    • Supplier Number: 19-1001
    • Kimpex Catalog Number: 207356


    Product Data:

    • Tip length: 0.984"
    • Total length: 1.717"
    • Zerk: Yes
    • Snap ring included: Yes
    • Compatible Brand: KAWASAKI
    • Compatible Brand: SUZUKI
    • Chart Position: Front
    • Chart Position: Rear
    • Model number: 19-1001

    Product Videos

    Custom Field

    Tip length 0.984"
    Total length 1.717"
    Zerk Yes
    Snap ring included Yes
    Position Varies by model
    Model number 19-1001
    Kimpex-Category ATV (9E)
    Make SUZUKI
    Make SUZUKI
    Model LT-A500XPZ KingQuad AXi SE EPS
    Model LT-A500XP KingQuad AXi EPS
    Year 2017
    Model LT-A500X KingQuad AXi
    Year 2016
    Model LT-A750X KingQuad AXi
    Model LT-A750XP KingQuad AXi EPS
    Model LT-A750XPZ KingQuad AXI SE EPS
    Year 2015
    Model LT-F250F QuadRunner 4x4
    Make KAWASAKI
    Year 2002
    Model Teryx 750 4x4
    Year 2014
    Year 2009
    Year 2013
    Year 2012
    Year 2011
    Year 2010
    Model Teryx 750
    Model LT-F500F Vinson 500 LTD 4x4
    Model LT-F500F Vinson 500 4x4
    Year 2007
    Year 2006
    Year 2005
    Year 2004
    Year 2003
    Model LT-F500F QuadRunner 4X4
    Year 1999
    Year 2001
    Year 2000
    Year 1998
    Model LT-F4WDX KingQuad 300 4x4
    Year 1994
    Year 1993
    Year 1997
    Year 1996
    Year 1995
    Model LT-4WD QuadRunner 250 4x4
    Year 1987
    Year 1991
    Year 1992
    Model LT-F300F KingQuad 4x4
    Year 1988
    Year 1990
    Year 1989
    Year 2008
    Model LT-A700X KingQuad 4x4
    Model LT-A700X KingQuad 4x4
    Model LT-A500F Vinson LTD
    Model LT-A500F Vinson 500 4x4 Automatic
    Model LT-A500F QuadMaster 4x4 Automatic
    Model LT-A450X KingQuad AXi 4x4
    Model Teryx 750 Sport
    Model Teryx 750 LE
    Model Teryx 750 4x4 LE
    Year 2023
    Model LT-A500XPZ KingQuad AXi SE+ EPS
    Model LT-A750XPZ KingQuad AXi SE+ EPS
    Year 2022
    Year 2021
    Year 2020
    Year 2019
    Year 2018
    Year 2024
    Year 2025
    Year 2026
