Product Description
- Motor is installed in the middle for a perfect balance (requires motor between 13HP to 23HP with horizontal crankshaft of 1’’).
- For 2-Cylinder Honda motors with Horse Power of 20 HP to 24HP, they need Bercomac exhaust silencer, for example ; No. Kimpex : 089269 cause the Honda exhaust silencer does not match.

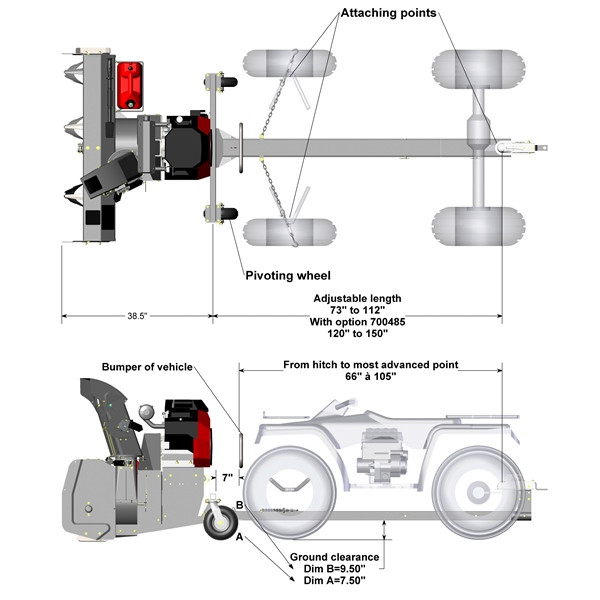

- Blower opening: 54’’ or 48’’ wide x 21’’ high.
- The sub frame attaches to the rear of the ATV/UTV on the hitch ball.
- Extendible Frame: 4.75" wide frame is adjustable to different lengths: 73" to 112".
- Weight may be transferred to the suspension of the vehicle for better manoeuvrability.
- Electrical control box included: adjust chute, engage clutch, and stop your engine, all from your seat.
- 3 shear bolt safety system.
- Reduction: single belt system (type “BX 55” belt) assures a long life span.
- Electric clutch engages snowblower instantly.
- Bigger wheels for better adaptability to any kind of terrain.
- Weight: 245 lbs without motor.
- Warranty: Residential 1 year, commercial 90 days.
Kimpex Data:
- Barcode: 779423556431
- Supplier Number: 700582-4-15A-KIM
- Kimpex Catalog Number: 568025
Product Videos
Custom Field
Length 54"
Motor included Yes
Motor included 15 HP
Designed for ATV
