Product Description

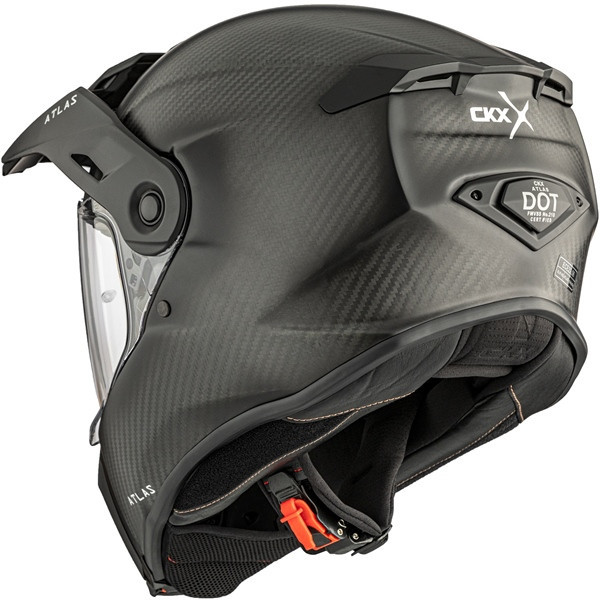

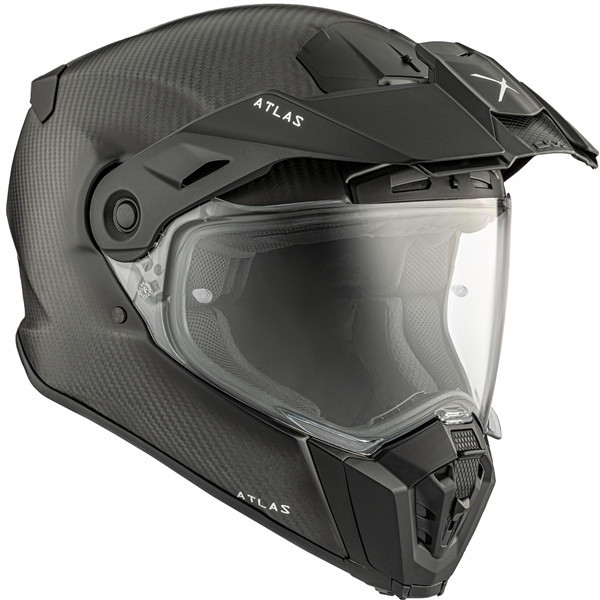

CKX Atlas — The adventure helmet built to adapt faster than the terrain
Fully designed in-house by CKX for adventure riding, the Atlas delivers exceptional visibility, unmatched modularity, and comfort that adapts to your pace. Featuring a panoramic photochromic shield, a pivoting and removable chin bar, and an extendable multi-position peak, you can modify the configuration in seconds—no tools needed. Whether you ride pavement, gravel, or rugged trails, the Atlas is ready for every adventure without compromise.
Inspired by the proven performance of CKX winter helmets (Titan, Mission), the Atlas strikes the perfect balance between protection, ventilation, and versatility, exceeding the requirements of both ECE 22.06 and DOT certifications. Whether you explore, ride enduro, or spend most of your time on paved roads, the Atlas is engineered to follow you everywhere.
Key Features
Panoramic Interchangeable Shield
The panoramic shield provides an exceptional field of vision and can be worn and closed over CKX 210° goggles*. Thanks to its ratchet mechanism, it can be removed or replaced without tools, offering lightning-fast adaptation to changing weather or terrain.
Pivoting and Removable Chin Bar
Unique to CKX, the lowered chin bar delivers maximum airflow, ideal for slower technical segments or high-effort riding. Opening the chin bar also improves your downward and close-range visibility for better control in demanding environments.
Extendable Multi-Position Peak
With 6 adjustment positions across 2 axes, the peak allows you to create personalized shade zones, even while riding. Its aerodynamic design reduces drag at high speed and can also be used as a deflector against dust or debris.
Patented Push-Button Mechanism
The exclusive CKX push-button system allows fast removal of the peak and shield—always tool-free. Few adventure helmets match this level of versatility.
No-Compromise Protection
The Atlas meets the stringent ECE 22.06 standard and DOT certification thanks to its optimized shell structure, impact management, and shield designed to protect from debris and wind.
Perfect Compatibility with 210° Goggles
Engineered to work seamlessly with CKX 210° goggles, the Atlas provides a wide, unobstructed field of vision, secure fit, and superior airflow when used in goggle mode.
*CKX 210° goggles sold separately.
Technical Specifications
- Composite carbon shell
- Weight : 1500 g ± 50 g
- 3 shell sizes (XS-S / M-L / XL-2XL)
- 4 EPS sizes
- 5 adjustable ventilation ports
- Adjustable front air intake
- Removable chin bar allowing increased airflow
- Extendable, aerodynamic, multi-position removable peak
- Patented push-button and ratchet system (tool-free shield/peak removal)
- Removable and washable interior liner and cheek pads
- ProClip quick-release chin-strap system
- Certifications: ECE 22.06 and DOT
- Ready for communication system installation
*Not recommended to ride with the chin bar open and/or without the protective grill.
Available Accessories
Pinlock Anti-Fog Inserts
- Pinlock Clear — Ref. 147069
- Pinlock Smoke — Ref. 147070
- Pinlock Photochromic — Ref. 147060
Replacement Shields

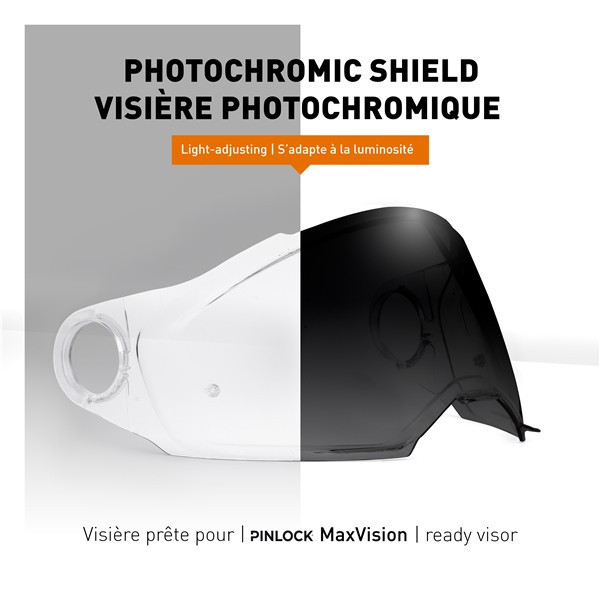

The Atlas comes standard with a photochromic shield. Additional options:
- Clear shield — Ref. 599041
- Smoke shield — Ref. 599043
CKX 210 Goggles — Summer Version
- Frame designed to maximize the field of vision
- Patented quick-attach system compatible with the Atlas (included in the helmet box)
- Ideal for dusty environments
- Available in multiple colors (see “210 Summer Goggles” section on the CKX website)
Kimpex Data:
- Barcode: 779421905392
- Supplier Number: 514835
- Kimpex Catalog Number: 514835
Product Data:
- Color: Matte Carbon
- Size: XL
- Graphic: Solid
- Shell: Atlas Carbon
- Lens: Single photochromic visor
- Goggles:
- Sunvisor Color: No Sunvisor
- Season: Summer
- Standards: DOT
- Standards: ECE
- Attach system: Quick Release / Proclip
- Gender: Unisex
- Gender: Adult
- Compatible Vehicle Category: ATV
- Compatible Vehicle Category: Motorcycle
- Classification: Dual/Adventure
