Product Description

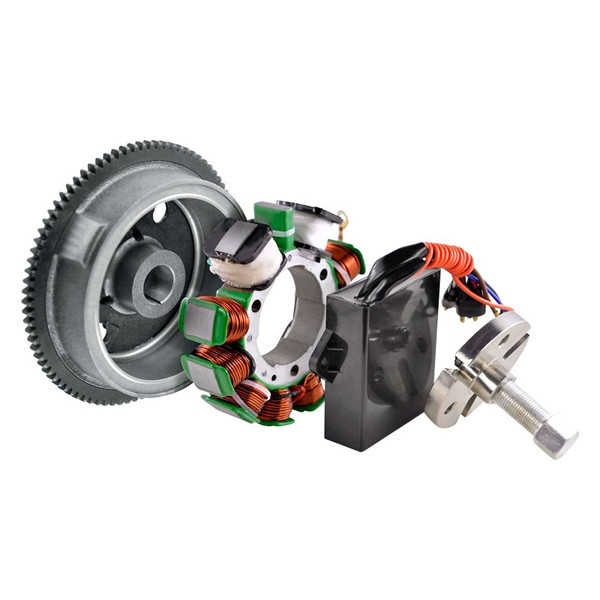

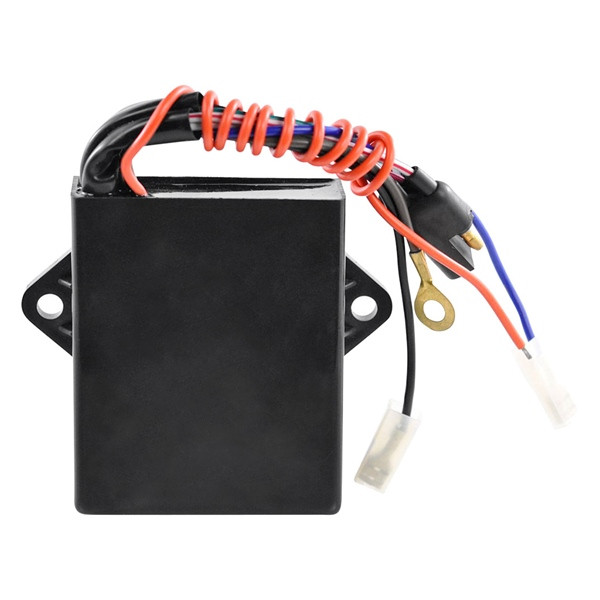

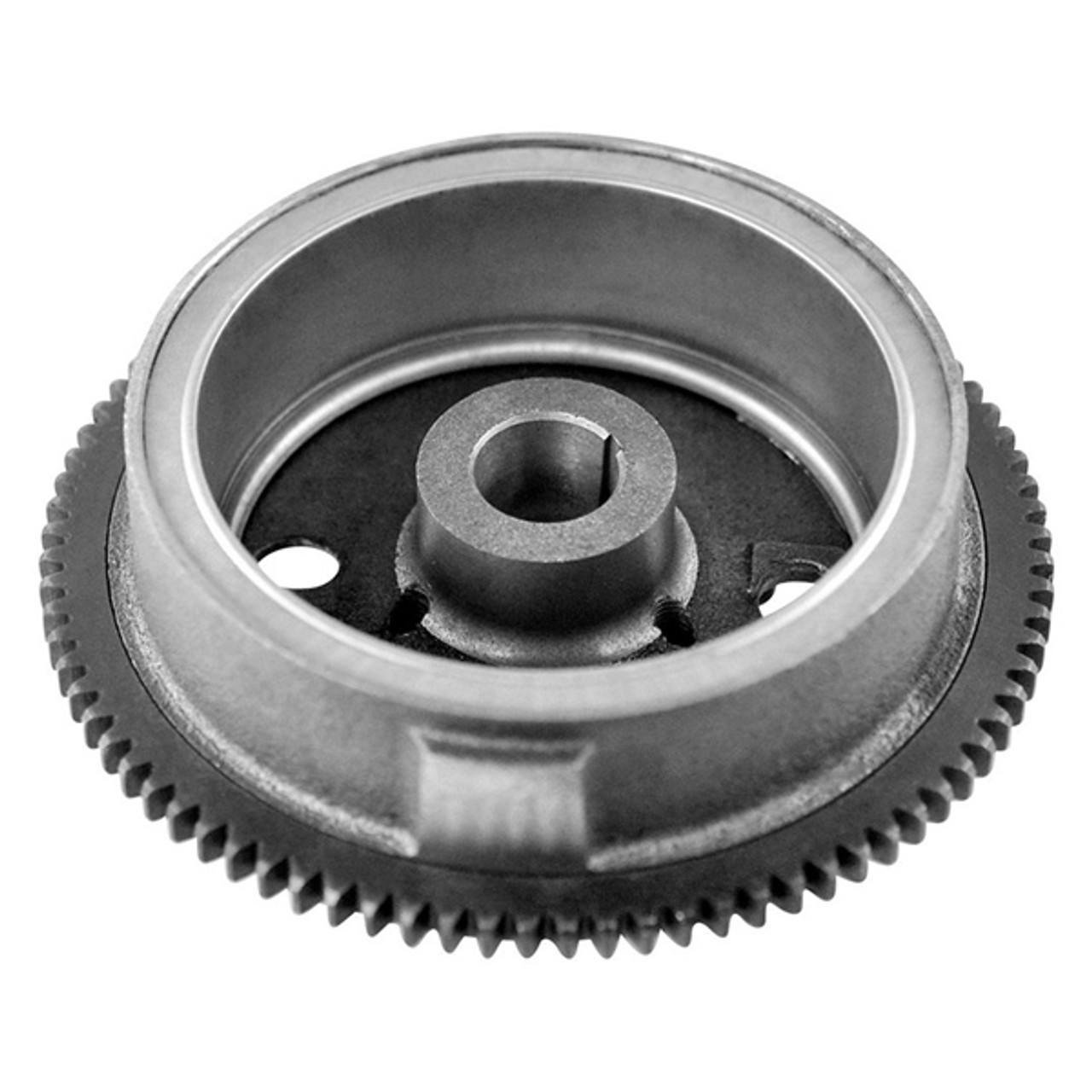

This kit includes: a Generator Stator, a Flywheel, a Puller, an AC to DC Ignition Conversion Kit.Flywheel
Dimensions:

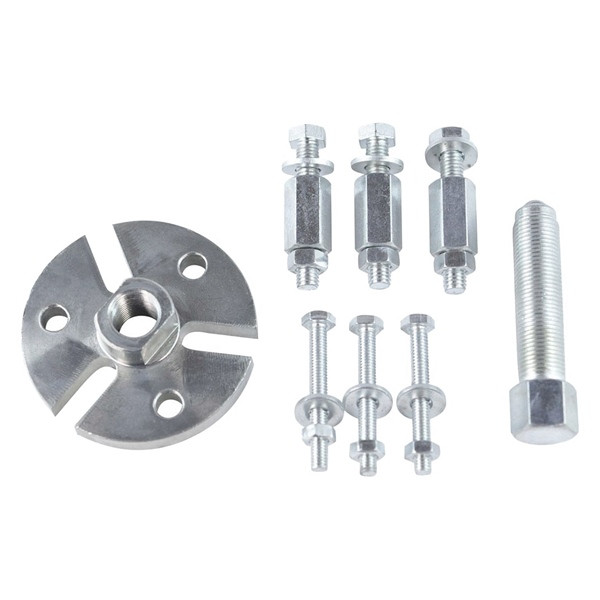

Flywheel Pullerr
SF-900-006548 / SF-900-006548 (345070 / 345072) - Polaris Sportsman Big Boss Scrambler

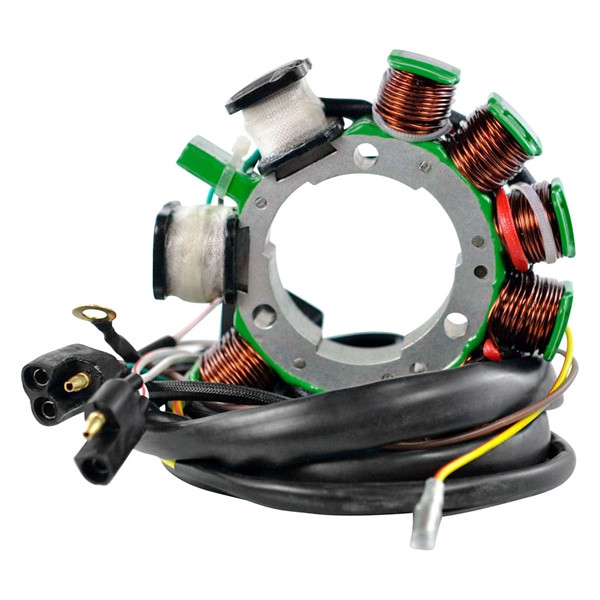

Generator Stator
Dimensions :
Other specifications :
Number of wires : 7
Number of plugs : 9 / 6
Number of pins : 12 / 8
Wire to wire resistance :
Alternator : Yellow/Red to Yellow = 0.4 ohms +/-20%
Pickup : White/Red to Red = 115 ohms +/-20%
Source : Black to Red = 18 ohms +/-20%
SF-900-006547 (345069) - Polaris Sportsman Scrambler Magnum
Stator
Dimensions :
Other specifications :
Number of wires : 9
Number of plugs : 7
Number of pins : 10
Wire to wire resistance:
Alternator: Yellow to Yellow/Red = 0.6 ohms +/-20%
Pickup: White to White/Red = 100 ohms =+/-20%
Source Green to Red/Black = 450 ohms =+/-20%
Source 2: Green to Black = 3.8 ohms =+/-20%
Kimpex Data:
- Barcode: 779421882280
- Supplier Number: RMS900-102832
- Kimpex Catalog Number: 345069
Product Data:
- Diameter: 4.1"
- External Diameter (mm): 141
- Internal Diameter (mm): 117
- External Thickness (mm):
- Internal Thickness (mm):
- Number: 345069
Product Videos
Custom Field
Diameter 4.1"
External Diameter (mm) 141
Internal Diameter (mm) 117
Number 345069
Kimpex-Category ATV (9E)
Make POLARIS
Model Sportsman 500 6x6
Model Worker 500
Year 2001
Year 1999
Model Sportsman 500 4x4
Year 2000
Year 1998
Model Scrambler 500 4X4
Year 1997
Model Ranger 500 6x6
Model Magnum 500 4x4
Model Big Boss 500 6X6
