Product Description

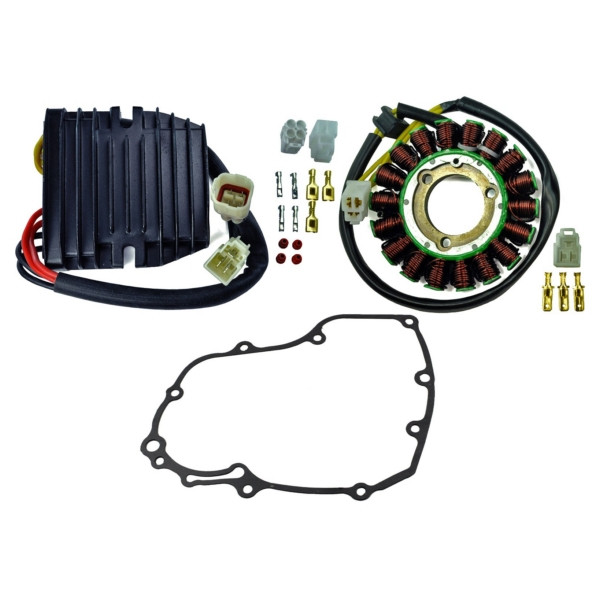

Stator + Mosfet Voltage Regulator Rectifier + Crankcase Cover Gasket Kit- Direct replacement to your original unit
- Plug-and-play, direct fit, easy installation.
- The quality exceeds the OEM equipment
- All product shipped are tested
- One year limited warranty
- Highest grade lamination materials
- Highest grade copper windings, resistant to 200 degrees Celsius.
- Pick up pulsar
- Connector included
- Rubber grommet included
- Crankcase cover gasket included
Mosfet Voltage Regulator Rectifier
Stop Burning your regulator Rectifier ! It is time to update or replace your voltage regulator with the advanced MOSFET type. This modern, ultra-reliable design can handle up to 50amp peaks and 30amp continuous 3 phase, 30amp single phase. It runs cooler than all OEM diode style regulators. In addition, this rectifier has overheat protection, rather than burn up it will simply turn off for a while and cool off.
- Higher grade of electronic components.
- Improved heat sink and charging capabilities
Kimpex Data:
- Barcode: 779423423313
- Supplier Number: RM22965
- Kimpex Catalog Number: 289017
Product Data:
- Compatible Brand: SUZUKI
- Internal Diameter (mm): 36
- External Diameter (mm): 106
- Thickness (mm): 8
- Number of wires: 3
- Number of connectors: 1
- Number of terminals: 3
- Notes: N/A
- Number: 289017
Product Videos
Custom Field
Kimpex-Category Moto (9B)
Make SUZUKI
Model GSX-R750
Year 2015
Year 2016
Year 2013
Model GSX-R600
Model GSX-R600 30 Years
Year 2017
Year 2014
Year 2012
Year 2011
Year 2009
Year 2006
Year 2008
Year 2007
Model GSX-R750 SE
Year 2018
Year 2019
