Product Description

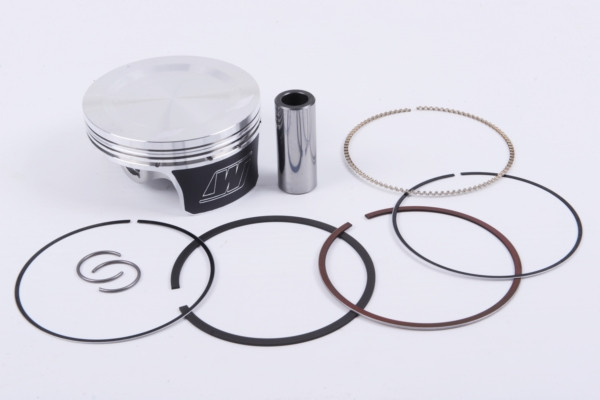

Pistons are precision machined on the latest, state of the art CNC equipment. The same low-expansion, low-friction piston alloy is used as is used for all major Japanese engine manufacturers. Piston Kits are a first class solution to replace the original piston in your Motorcycle, Scooter, Moped, ATV, Personal Watercraft, etc.Piston for sleeved cylinders are available in standard size and a wide range of oversizes. The availability of oversizes up to 2mm significantly helps to increase the lifespan of a cylinder by offering more re-boring possibilities. Pistons for plated cylinders come in standard size, as well as in A, B, C, D+ oversizes. Take advantage of the additional oversizes to extend the lifespan of plated cylinders. All Piston Kits are supplied complete with Piston Rings, Wrist Pin and Circlips.
Kimpex Data:
- Barcode: 779420646562
- Supplier Number: 4902M10200
- Kimpex Catalog Number: 063740
Product Data:
- Compatible Brand: YAMAHA
- Displacement: 686 cc
- Bore - Standard: 102 mm
- Bore - Oversize: Standard
- Bore - Actual: 102 mm
- Stroke: 84 mm
- Notes: Skirt Coating
- Notes: Dish
- Notes: Cylinder deglazing required
- Notes: Nikasil Bore
- Number: 063740
Product Videos
Custom Field
Compatible Brand Fits Yamaha
Displacement 686 cc
Bore - Standard 102 mm
Bore - Oversize Standard
Bore - Actual 102 mm
Stroke 84 mm
Notes Skirt Coating
Notes Dish
Notes Cylinder deglazing required
Notes Nikasil Bore
Number 063740
Kimpex-Category ATV (9E)
Make YAMAHA
Model Grizzly 700 4x4 Auto
Year 2007
Year 2008
Model Raptor 700 50th Anniversary
Model Grizzly 700 4x4 FI
Year 2011
Year 2006
Model Raptor 700
Year 2012
Model Raptor 700R
Year 2014
Model Rhino 700 4x4 FI
Model Rhino 700 SE FI
Year 2013
Model Grizzly 700 EPS 4x4 FI
Model Grizzly 700 EPS 4x4 SE
Model Grizzly 700 EPS 4x4 Hunter FI
Model Rhino 700 SE FI Deluxe
Model Rhino 700 Sport Deluxe FI
Year 2009
Model Rhino 700 Sport FI
Model Rhino 700 4x4 FI Ducks Unlimited YXR700F
Year 2010
Model Grizzly 700 EPS 4x4 LE
Model Grizzly 700 4x4 Hunter FI
Model Grizzly 700 EPS DUCKS
Model Raptor 700R SE
