Product Description
$$ To install tracks on your ATV, you need:
Step 1

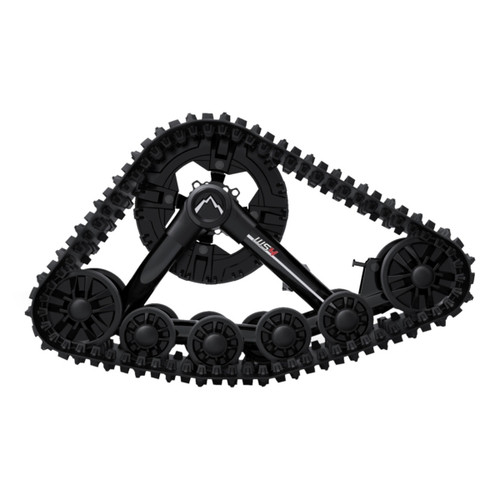

- 397001: Choose your WS4 Track kit
- You may refer to the chart shown in the photos.
- You may browse the website using the Search “by vehicle” search tool.

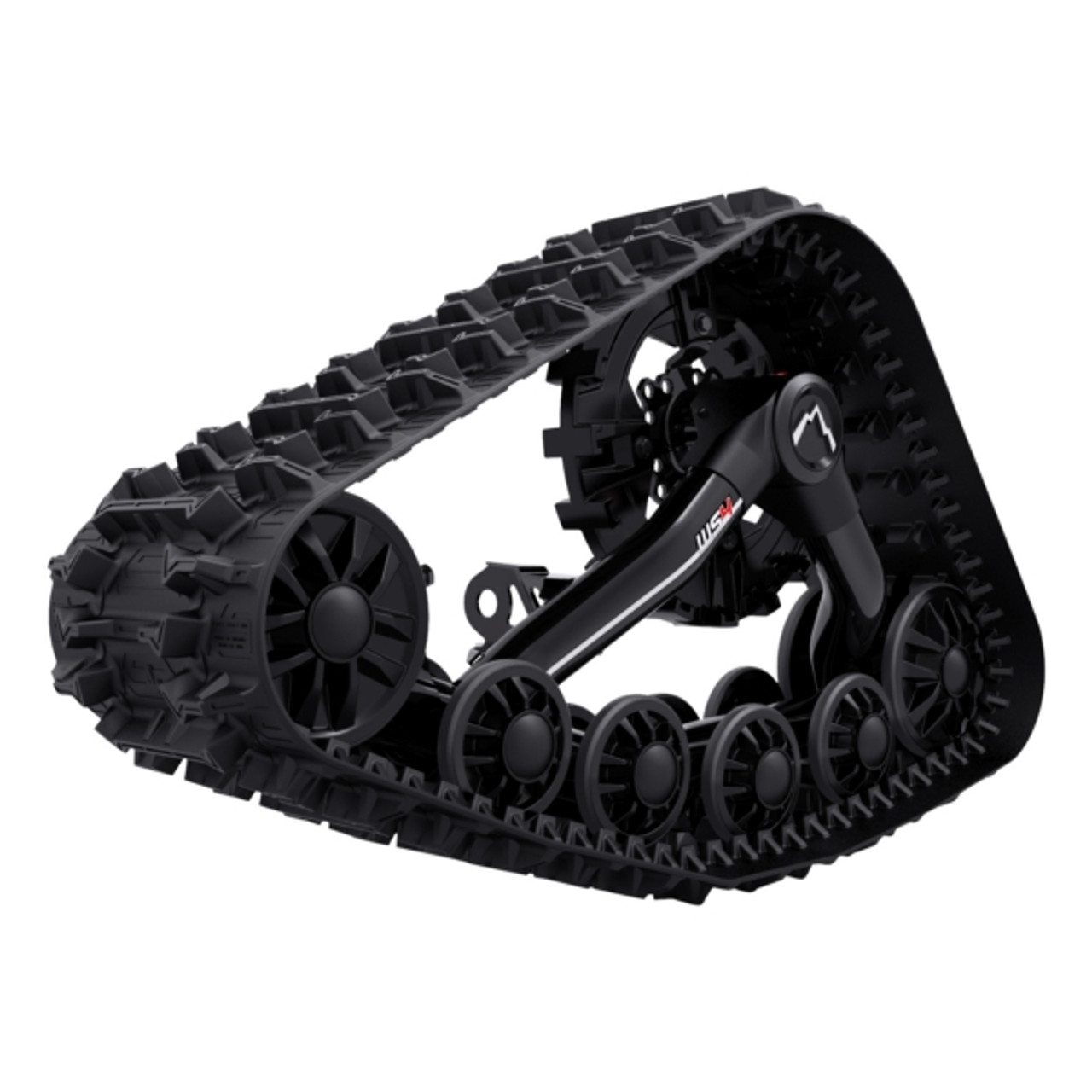

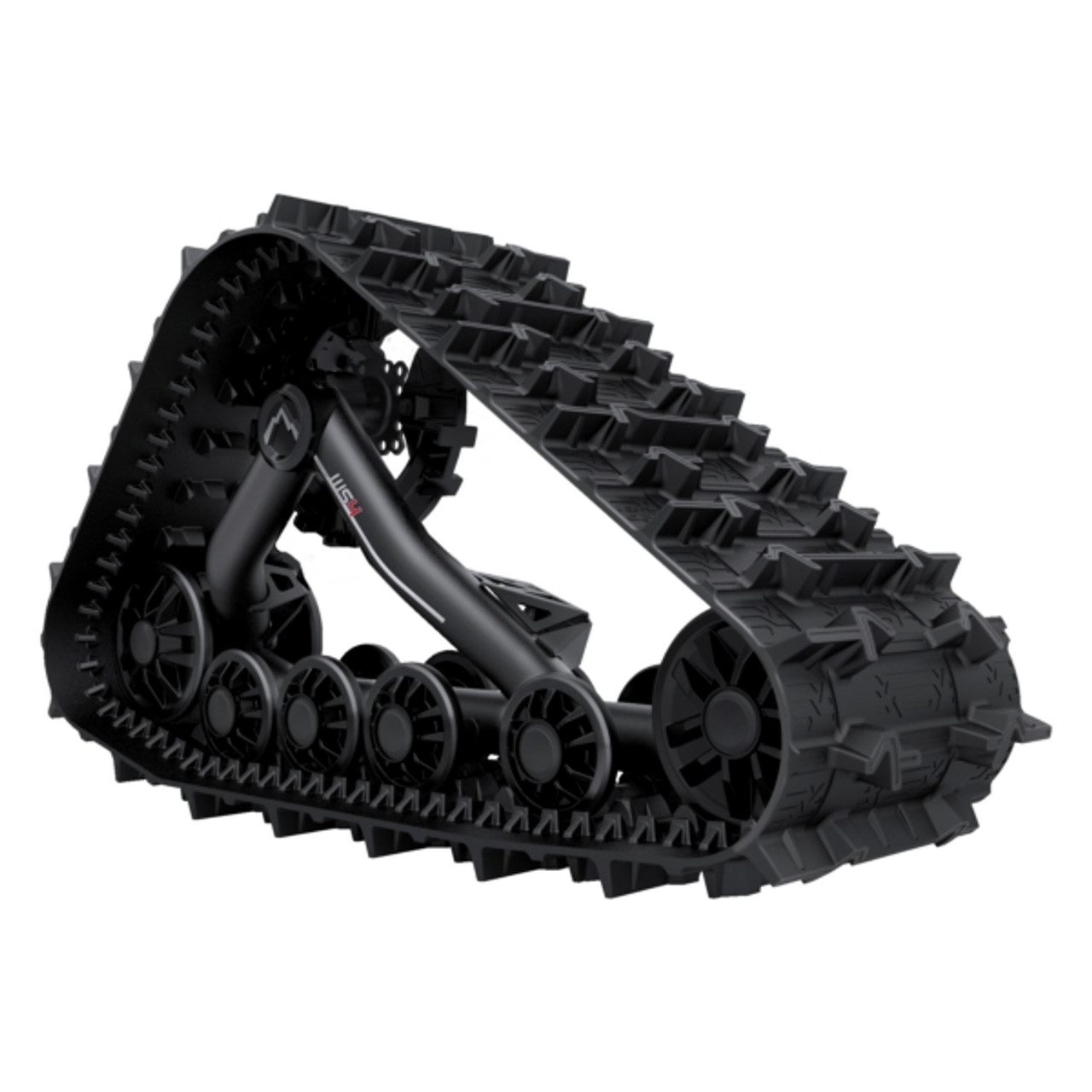

WS4 LOW RATIO is specily for those who see a track kit more as a working tool than a recreational accessory, here’s the commander WS4 LOW RATIO. $$Equiped with our 13 inches sprocket, allowing more power to the track, the commander WS4 LR will help you achieve your hardest job without compromising agility and control.
$$
Why limit yourself when you could drive a WS4 “Commander”!
- 13” (330 mm) sprocket built for all season use
- Aggressive track profile $$
- HD tensioner: Quick & easy to use
- Pronounced attack angle helps to clear obstacles
- Wheels contact patch coated with rubber: Prevents ice from sticking $$
- System without slider shoe for all season performance $$
- FThree wheels on the ground for less steering effort $$
- Wheels with two cap-protected ball bearings : low and easy maintenance$$
- Triangulated frame composed of robust 2.5” (64 mm) steel tubing$$

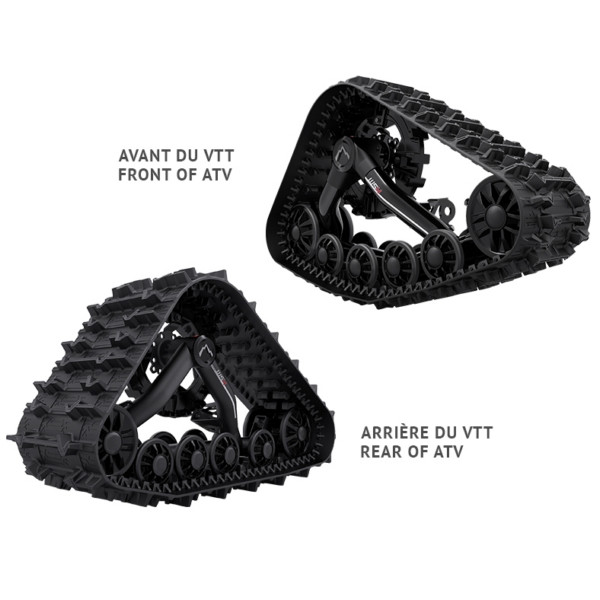

- Width: 292 mm / 11.5” front, 330.2 mm / 13” rear
- Length: 2460 mm / 97” front, 2540 mm / 100” rear
- Weight: (without mount kit) 72 lb. / 32 kg front, 75 lb. / 34 kg rear
- Frame material: Steel
- Lug height: 25 mm / 1.00” front, 32 mm / 1.25” rear $$
- Drive type: Internal
- Flotation surface: 1.32 m² / 2045 in² total = 0.61 m² / 945 in² front & 0.71 m² / 1100 in² rear
- Ground clearance: Increase of 125 mm / 5” $$
- Speed loss: 45% $$
- Initial installation time: 1,5 hrs.
- Subsequent installation time: 30 minutes $$
- Applications: ATV only
- Snow: Deep, Moderate, Path and Springtime
- Off Snow: Marshland, Mud, Sand, Dirt road and Gravel
The DPS module gives you the real speed of your vehicule while driving. Here are the codes to be used depending on the vehicule you own:
- Outlander G1 (Since 2012) = 715 000 969
- Outlander G2 (2013 and up) = 715 001 202
- Outlander L = 715 001 202
- Renegade G2 (2012 and up) = 715 001 202
Kimpex Data:
- Barcode: 779420209491
- Supplier Number: 2810604
- Kimpex Catalog Number: 397000
Product Data:
- Application: 4 Seasons
- Bolts pattern: 4/110
- Speed loss: 45%
- Flotation surface: 2045 square inch
- Length: 97" front and 100" rear
- Width: 11.5" front and 13" rear
- Lug height: 1" front and 1.25" rear
- Drive type: Internal
- Frame material: Steel
- Model number: 2810604
Product Videos
Custom Field
Application 4 Seasons
Flotation surface 2045 square inch
Drive type Internal
Length 97" front and 100" rear
Width 11.5" front and 13" rear
Lug height 1" front and 1.25" rear
Speed loss 45%
Bolts pattern 4/110
Frame material Steel
Model number 2810604
Kimpex-Category ATV (9E)
Make CFMOTO
Model Cforce 800 LX EPS
Model Cforce 500 EPS LX 2-up
Year 2016
Make CAN-AM (BRP)
Model Renegade 850
Model Renegade 850 Xxc
Year 2017
Model Renegade 570 Xmr
Model Renegade 570
Model Renegade 1000R
Model Renegade 1000R Xxc
Model Renegade 1000R Xmr
Model Outlander MAX 850 XT-P
Model Outlander MAX 850 XT
Model Outlander MAX 650 XT
Model Outlander MAX 650 DPS
Model Outlander MAX 570
Model Outlander MAX 570 XT
Model Outlander MAX 450
Model Outlander MAX 570 DPS
Model Outlander MAX 1000R XT-P
Model Outlander MAX 450 DPS
Model Outlander MAX 1000R XT
Model Outlander MAX 1000R LTD
Model Outlander 850 XT-P
Model Outlander 850 XT
Model Outlander 850 Xmr
Model Outlander 850 DPS
Model Outlander 650 XT
Model Outlander 650 Xmr DPS
Model Outlander 650
Model Outlander 650 DPS
Model Outlander 570
Model Outlander 570 XT
Model Outlander 570 Xmr DPS
Model Outlander 570 DPS
Model Outlander 450
Model Outlander 450 DPS
Model Outlander 1000R XT-P
Model Outlander 1000R XT
Model Outlander 1000R Xmr
Model Outlander 1000 Hunting Ed. PS Camo
Model Outlander 1000R DPS
Make ARCTIC CAT (TEXTRON)
Model Alterra 700 XT EPS
Model Alterra 700
Model Alterra 400
Model Alterra 500
Make YAMAHA
Model Kodiak 700 EPS 4x4
Model Kodiak 700 EPS 4x4 SE
Model Grizzly 700 EPS 4x4 LE
Model Kodiak 700
Model Grizzly 700 EPS 4x4 FI
Model Grizzly 700 4x4 FI
Make SUZUKI
Model LT-A750XPZ KingQuad AXI SE EPS
Model LT-A750XP KingQuad AXi EPS
Model LT-A750X KingQuad AXi
Model LT-A500XP KingQuad AXi EPS
Model LT-A500X KingQuad AXi
Model LT-A500XPZ KingQuad AXi SE EPS
Model MudPro 700 LTD EPS
Make HONDA
Model 500 Core
Model TRX420FM1 4x4 Rancher
Model 1000 XT EPS
Model MudPro 1000 LTD EPS
Model Cforce 400
Model Cforce 400 EPS LX
Model Cforce 400 2 up
Model Cforce 400 EPS LX 2-up
Model Alterra TRV 500
Model Alterra TRV 700 XT EPS
Model Alterra TRV 1000 XT EPS
Model TRX420TM1 2x4 Rancher
Model TRX420TE1 2x4 Rancher ES
Year 2015
Model TRX420TE 2x4 Rancher ES
Model LT-A400F KingQuad ASi
Model LT-F400F KingQuad FSi
Model 400 4x4 LE Automatic
Model 500 4x4 LE Automatic
Year 2006
Model Cforce 800 EPS
Model Cforce 500
Model Alterra 550 XT EPS
Model Alterra 550
Model Alterra 450
Model Alterra 500 XT EPS
Model TRV 700 SE EPS
Model TBX 700 EPS
Model Grizzly 700 EPS 4x4 SE
Make KAWASAKI
Model Grizzly 700 EPS 4x4 Hunter FI
Model Brute Force 750 EPS 4x4i
Model Brute Force 750 4x4i
Model Brute Force 750 SE EPS 4x4i
Model TRX420FPM 4x4 Rancher EPS
Model TRX420FA2 4x4 Rancher Auto DCT EPS
Model TRX500FM1 4x4 Foreman
Model TRX500FE2 4x4 Foreman ES EPS
Model TRX500FM5 4x4 Foreman Rubicon IRS
Model TRX500FA6 4x4 Forman Rubicon Auto DCT IRS EPS
Model TRX500 Rubicon DCT IRS EPS
Model TRX500FA7 4x4 Forman Rubicon Auto DCT IRS EPS Deluxe
Model TRX680FA5 4x4 Rincon Auto IRS
Model Outlander L 450
Model Outlander L 450 DPS
Model Outlander L MAX 450
Model Outlander L MAX 450 DPS
Model Outlander L 570
Model Outlander L 570 DPS
Model Outlander L 570 LE DPS
Model Outlander L MAX 570
Model Outlander L 570 XMR DPS
Model Outlander L MAX 570 DPS
Model Outlander MAX 500 XT
Model TRX500FM7 4x4 Foreman Rubicon IRS EPS Deluxe
Model TRX500FGA 4x4 Foreman Rubicon GPS
Year 2004
Model TRX500FM6 4x4 Foreman Rubicon IRS EPS
Model TRX500FA6 4x4 Foreman Rubicon Auto DCT IRS EPS
Model TRX500FA7 4x4 Foreman Rubicon Auto DCT IRS EPS Deluxe
Model TRX420FM2 4x4 Rancher EPS
Model TRX420FA6 4x4 Rancher Auto DCT IRS EPS
Model XR 700 XT PS
Model XR 700 LTD PS
Model XR 700
Model XR 550 XT PS
Model XR 550 LTD PS
Model XR 550
Model XR 500
Model TRV 700 XT EPS
Model TRV 700 LTD EPS
Model 700 4X4 Diesel Super Duty
Model TRV 550 XT EPS
Model TRV 550 LTD EPS
Model TRV 500
Model 450 Core
Model 400 Core
Model TRV 1000 XT EPS
Model TRV 1000 LTD EPS
Model Outlander 800 XT-P
Model Renegade 800 Xxc
Model Outlander 800 XT
Model Outlander 800R Xmr
Model Outlander 1000 XT-P
Model Outlander 500 XT
Model Outlander 1000 XT
Model Outlander 1000 Xmr
Model TRX500FPA 4x4 Foreman Rubicon EPS
Model TRX500FA 4x4 Foreman Rubicon
Year 2014
Model TRX420FA 4x4 Rancher Auto
Model Outlander L 500
Model Outlander L MAX 500
Model Outlander L 500 DPS
Model Outlander L MAX 500 DPS
Model Outlander 500 DPS
Model Outlander MAX 500 DPS
Model Outlander MAX 650
Model Outlander 800
Model Outlander 800 DPS
Model Outlander MAX 800 DPS
Model Outlander MAX 800 XT
Model Outlander MAX 800 XT-P
Model Outlander 1000 DPS
Model Outlander MAX 1000 DPS
Model Outlander MAX 1000 LTD
Model Renegade 500
Model Renegade 800R
Model Grizzly 450 4x4 EPS
Year 2012
Year 2013
Model Grizzly 550 4x4 FI
Year 2011
Model Grizzly 350 4x4 IRS
Model Grizzly 350 4x4
Model Wolverine 450 4x4
Model Grizzly 450 4x4 IRS
Year 2010
Year 2009
Model Wolverine 350 4x4
Model Grizzly 400 4x4
Year 2008
Year 2007
Model Bruin 350 2x4
