Product Description

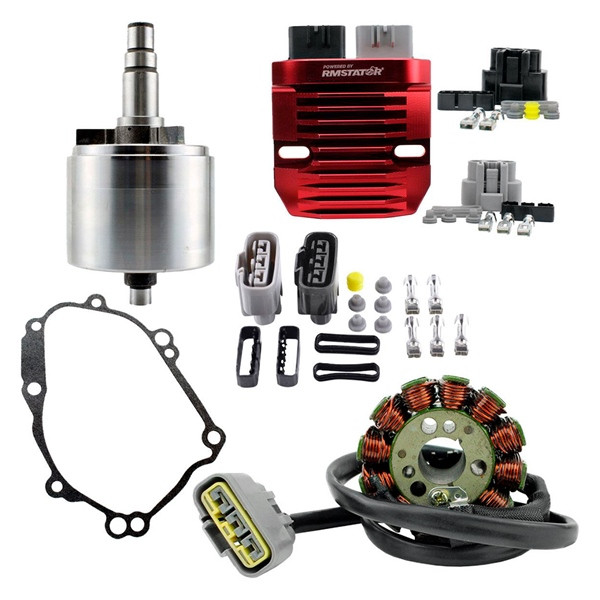

This kit includes: a Stator, an Aluminum Mosfet Regulator, a Heavy Duty Flywheel and a Crankcase Cover Gasket and Connectors kit.- Crankcase cover gasket included
- Connector kit included
- All products are tested

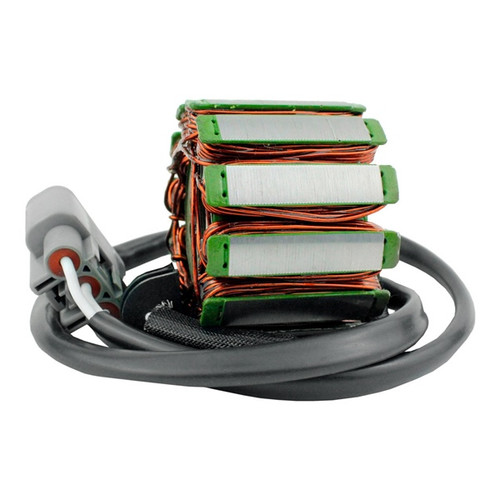

Stator
- Direct replacement to your original unit
- Plug-and-play, direct fit, easy installation
- Highest grade lamination materials
- Highest grade copper windings, resistant to 200 degrees Celsius
- Connector included
- Rubber grommet included

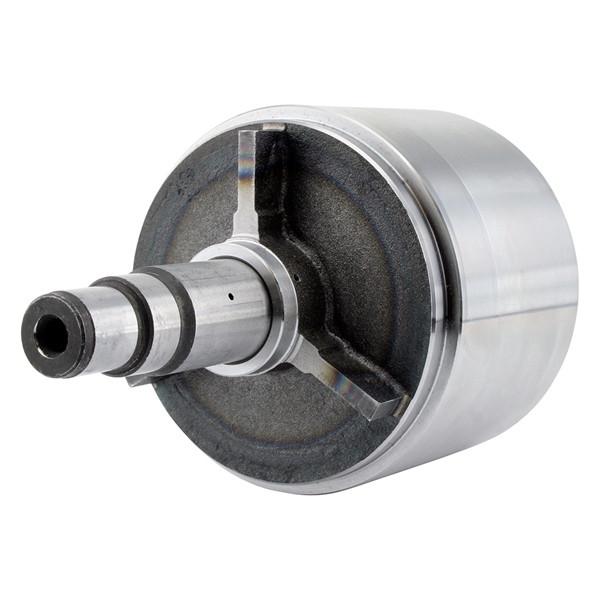

Heavy Duty Flywheel Rotor
KIMPEX is offering a replacement flywheel for your Yamaha.This flywheel can be used as a direct replacement to the OEM.
Features
- Improved epoxy: Uses high temperature epoxy that is stronger than OEM, eliminating the possibility of magnet detachment.
High grade steel capping: Prevents heat and friction from degrading the epoxy attaching the magnets. Though extremely unlikely, if a magnet did ever come loose, it would remain in the sleeve preventing contact with the stator.
Precise balancing: Eliminates crankshaft vibrations for longer engine longevity.
Two years warranty. All products are tested.
Aluminum Mosfet Regulator
Our new red machined aluminum Mosfet voltage regulator is a great upgrade for heat dissipation in any powersports charging system. After 10 minutes of use, our billet aluminum heatsink runs cooler by 33% than standard cast regulator housings. Our new red regulator, equipped with the renowned Mosfet regulation technology, is an added value to any three-phase permanent magnet charging system.
This modern, ultra-reliable concept can handle up to 50 amps peak and 30 amps continuous 3 phase, 30 amps single phase and dissipates heat better than any OEM diode regulator. In addition, this rectifier has overheating protection, rather than burning out, it turns off for a while in order to cool down.
Features- Direct replacement to your original unit
- Plug-and-play, direct fit, easy installation
- The quality exceeds the OEM equipment
- Improved heat sink and charging capabilities
- Higher grade of electric components.
- All shipped products are tested
Why use Mosfet Enhanced technology?
Runs coolerRuns much cooler than the traditional Shunt voltage regulator rectifier.
Saves gas
Less load on the stator, less work, less fuel is used and you save.
Regulated energy
The power charging your battery is steadier and smooth.
Extended battery life
Extends the battery’s life and cold cranking capacity.
More engine power
Removes stator load resulting in more engine power.
Optimized power
Optimize power delivery by switching the stator coils on or off.
Kimpex Data:
- Barcode: 779421882440
- Supplier Number: SF-900-006863
- Kimpex Catalog Number: 345100
Product Data:
- Compatible Brand: Fits Yamaha
- Internal Diameter (mm): 18
- External Diameter (mm): 68
- Thickness (mm): 42
- Number of wires: 3
- Number of connectors: 1
- Number of terminals: 3
- Number: 345100
Product Videos
Custom Field
Compatible Brand Fits Yamaha
Internal Diameter (mm) 18
External Diameter (mm) 68
Thickness (mm) 42
Number of wires 3
Number of connectors 1
Number of terminals 3
Number 345100
Kimpex-Category Moto (9B)
Make YAMAHA
Model FZ8 Anniversary
Model FZ1
Year 2015
Year 2012
Year 2013
Year 2014
Model Fazer 8
Model FZ8
Year 2011
Year 2010
Year 2009
Model YZF-R1 1000
Year 2008
Year 2007
Year 2006
