Product Description

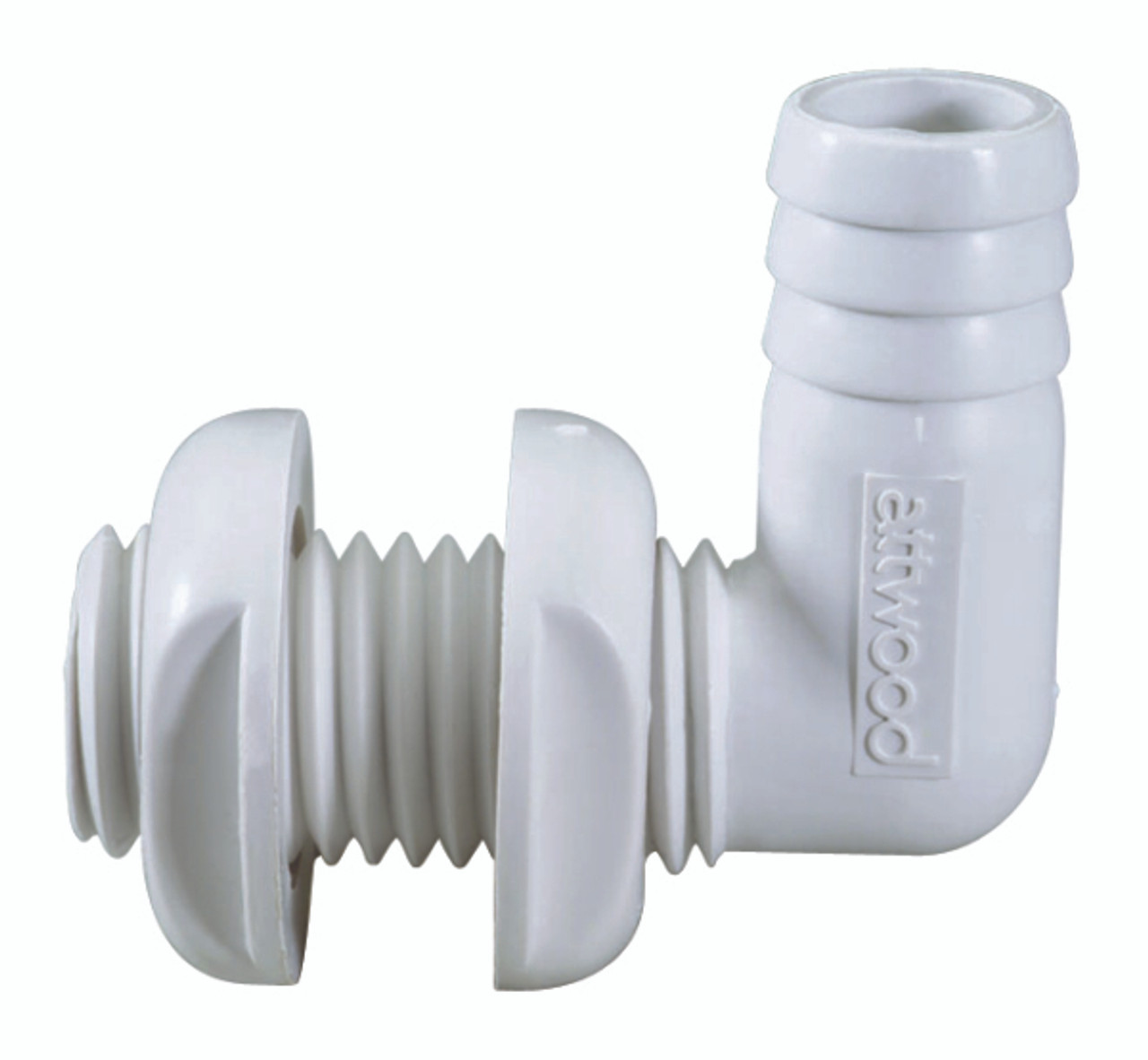

90° thru-hulls are ideal for tight installations, such as livewell overflow drains. Design eliminates hose kinking. Polypropylene construction. Accommodates 7533A (1/2") bailer plug.709173: 3/4”, white. For 3/4” inside diameter hose. Maximum hull thickness: 1”. Flange diameter: 1-1/2”. Installation hole size: 1”.
709174: 1-1/8”, white. For 1-1/8” or 1-1/4” inside diameter hose. Maximum hull thickness: 1-7/8”. Flange diameter: 2-7/16”. Installation hole diameter: 1-5/16”.
WARNING
This product contains chemicals known to the state of California to cause cancer, birth defects or other reproductive harm.
Kimpex Data:
- Barcode: 779421043322
- Supplier Number: 3877-3
- Kimpex Catalog Number: 709173
Product Videos
Custom Field
Hose Diameter N/A
Length N/A
Material Polypropylene
Connector Type 90°
Number 709173
Kit No
