Product Description
For all tracks 1 1/4" and +Caracteristics
- Oversized and pointed tungsten carbide
- For enhanced traction
- Hot-dipped steel and galvanized stud
- Big tread for good anchoring
- Lasting durability
- Light
- Easy to install and dismantle
- 100, 150, 200, 250 and 1000 unit packages
- Installation Tool Included
- ST = Standard Tread (without shoulder)
- R = Racing (the carbide is pointed)
Snowmobile, Motocross, ATV
Technical Information
- Always pre-drill with 1/16 "drill bit for snowmobile tracks.
- Ease installing and in pre-drilling we are sure we are going to be in the middle of the track and that we are going to go right.
- Add soap on the stud treads for better penetration.
- For a 120'' track, you need about 180 studs
- For 137'' track, you need about 200 studs
- For 144'' track, you need about 250 studs
- For the pattern of a snowmobile track, take the toughest studs.

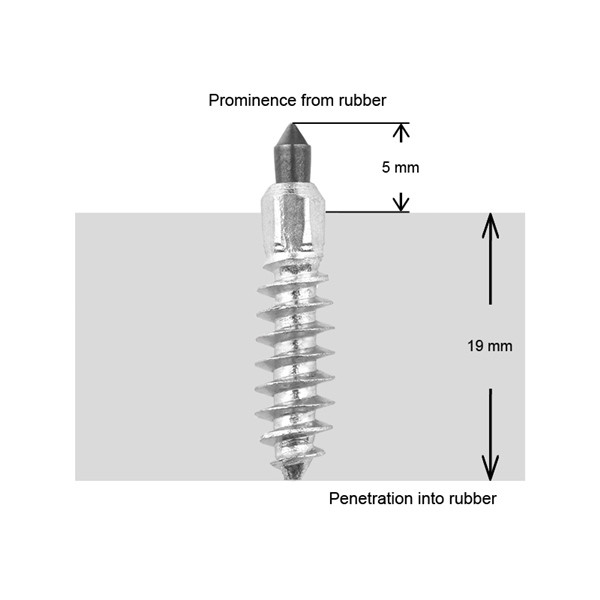

The gray part in the picture represents the snowmobile’ track stud. The iGRiP stud should be inserted as shown in the picture. Only the carbide and the dome section (taper section) should be exposed. The whole hexagon should be embedded.
Kimpex Data:
- Barcode: 779420836758
- Supplier Number: ST-24150R
- Kimpex Catalog Number: 103082
Product Videos
Custom Field

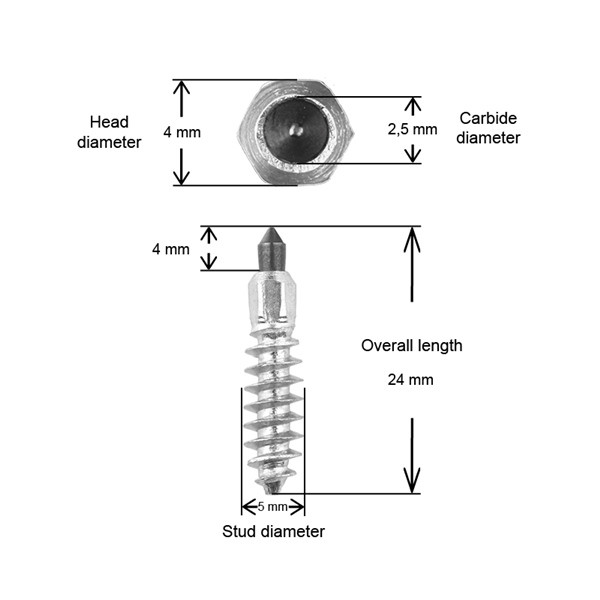

Length 24 mm
Thread diameter 5 mm
Unit per package 150
Lock-nuts or nuts included Yes
Backers included No
Model ST24R
Number 103082
