    Product Description

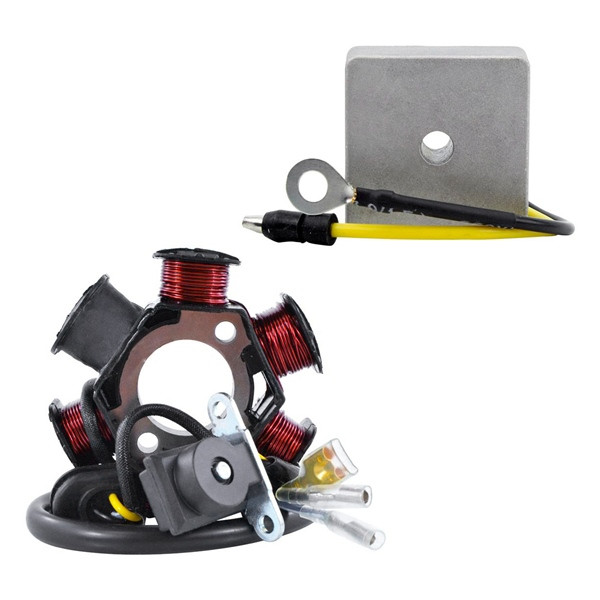

    Kit Lighting Stator + AC Voltage Regulator Rectifier

      All products shipped are tested

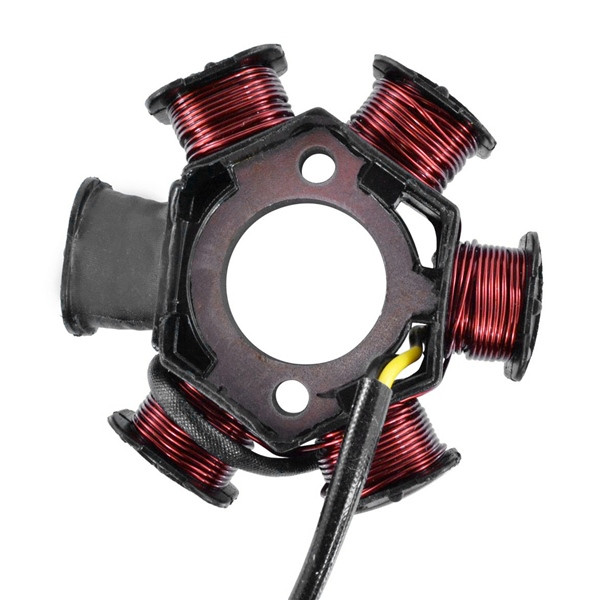

    Stator
    • Direct replacement to your original unit
    • Plug-and-play, direct fit, easy installation
    • Highest grade of lamination materials
    • Highest grade of copper winding, resistant to 200 degrees Celsius
    • Pick up pulsar coil included
    • Rubber grommet included

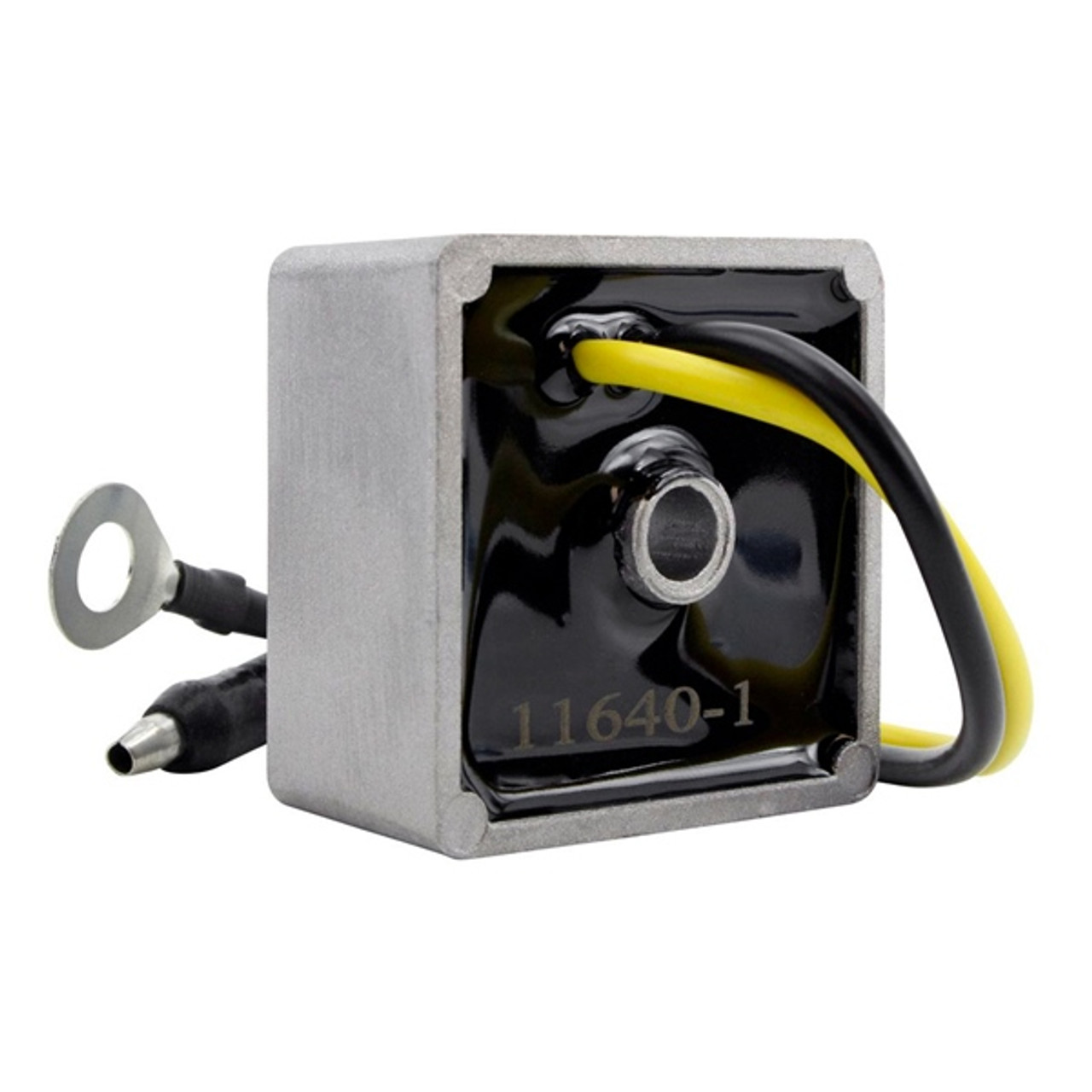

    Heavy Duty AC Voltage Regulator Rectifier
    • 12 Volts regulator used by Baja winners
    • Heavy duty and improved regulator rectifier
    • For use with all standard halogen and quartz lights
    • Precise voltage control, eliminates light burnout
    • Reduce flickering and dimming
    • Simple installation
    • Works with all other OEM part
    • Rated at 225 watts
    Veuillez noter: The OEM stator did not include a lighting coil because no lights come on the bike. If you would like to add a headlight and/or taillight, our stator includes a 100 Watt lighting coil between the Yellow wire and ground. The Black wire from the regulator needs to be grounded to the frame, and the Yellow wire is connected to the Yellow wire from the stator and also to your lights (the other side of your lights are grounded to the frame to complete the circuit). A new regulator must be used to support the lighting..

    Veuillez noter: the body is different than the OEM (fix it with only one screw instead of two), but it works on the same models.

    Veuillez noter: this regulator has two wires, yellow to power and black to ground.


    Kimpex Data:
    • Barcode: 779421882426
    • Supplier Number: SF-900-006772
    • Kimpex Catalog Number: 345098


    Product Data:

    • Compatible Brand: Fits Honda
    • Internal Diameter (mm): 30
    • External Diameter (mm): 85
    • Thickness (mm): 32
    • Number of wires: 3
    • Number of terminals: 3
    • Number: 345098

    Product Videos

    Custom Field

    Compatible Brand Fits Honda
    Internal Diameter (mm) 30
    External Diameter (mm) 85
    Thickness (mm) 32
    Number of wires 3
    Number of terminals 3
    Number 345098
    Kimpex-Category Moto (9B)
    Kimpex-Category Moto (9B)
    Make HONDA
    Model CRF100F
    Model CRF80F
    Year 2013
    Year 2012
    Year 2011
    Year 2009
    Year 2009
    Year 2008
    Year 2007
    Year 2006
    Year 2005
    Year 2004
    Year 2004
    Model XR80R
    Model XR100R
    Year 2003
    Year 2002
    Year 2002
    Year 2001
    Year 2000
    Year 1999
    Year 1998
    Year 1997
    Year 1997
    Year 1996
    Year 1996
    Year 1995
    Year 1995
    Year 1994
    Year 1993
    Year 1992
