Product Description

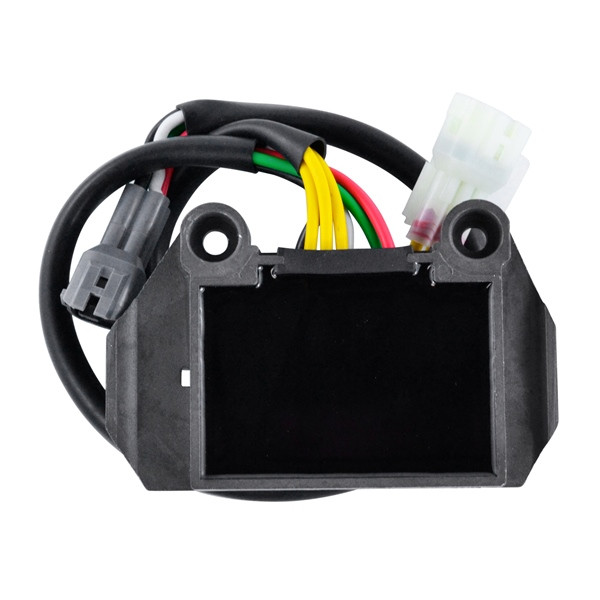

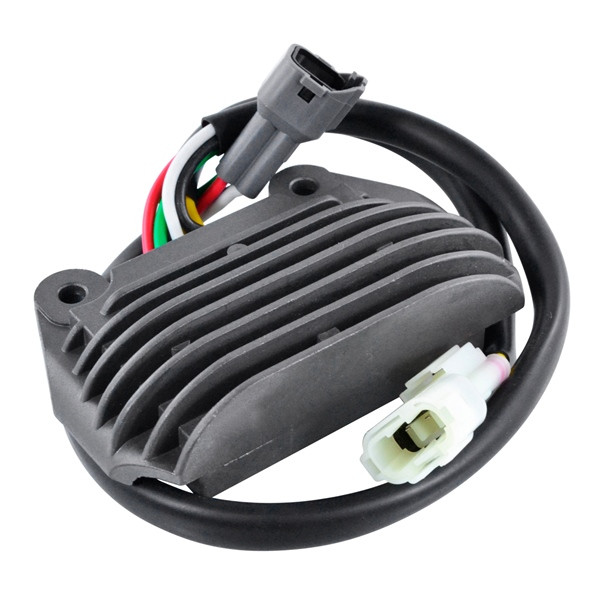

Stop burning your regulator rectifier! It is time to update or replace your voltage regulator with the advanced Mosfet type.It runs cooler than all OEM diode style regulators. In addition, this rectifier has overheat protection, rather than burn up it will simply turn off for a while and cool off.
- Direct replacement to your original unit
- No assembly required
- Higher grade of electric components
- Improved heat sink and charging capabilities
- The quality exceeds the OEM equipment
- All products shipped are tested
- One year limited warranty
Runs cooler: Runs much cooler than the traditional Shunt voltage regulator rectifier.
Saves gas: Less load on the stator, less work, less fuel is used and you save.
Regulated energy: The power charging your battery is steadier and smooth.
Extended battery life: Extends the battery’s life and cold cranking capacity.
More engine power: Removes stator load resulting in more engine power.
Optimized power: Optimize power delivery by switching the stator coils on or off.
Kimpex Data:
- Barcode: 779421561246
- Supplier Number: SF-020-004014
- Kimpex Catalog Number: 225606
Product Data:
- Width (mm): 74
- Length (mm): 115
- Height (mm): 29
- Number of wires: 7
- Wire length: 270 mm
- Wire length: 465 mm
- Number of connectors: 7
- Number of terminals: 2
- MM between fixation holes: 6.80
- Compatible Brand: Fits KTM
- Number: 225606
- Notes: N/A
Product Videos
Custom Field
Width (mm) 74
Length (mm) 115
Height (mm) 29
Number of wires 7
Wire length 270 mm
Wire length 465 mm
Number of connectors 7
Number of terminals 2
MM between fixation holes 6.80
Compatible Brand Fits KTM
Number 225606
Notes N/A
Kimpex-Category Moto (9B)
Make KTM
Model 500 EXC Six Days
Model 350 XCF-W Six Days
Year 2016
Model 500 XC-W 4 Stroke
Model 450 XC-W 4 Stroke
Model 500 EXC 4 Stroke
Model 350 EXC-F
Model 250 XCF-W
Year 2015
Model 350 XCF-W
Year 2014
Year 2013
Year 2012
