Product Description

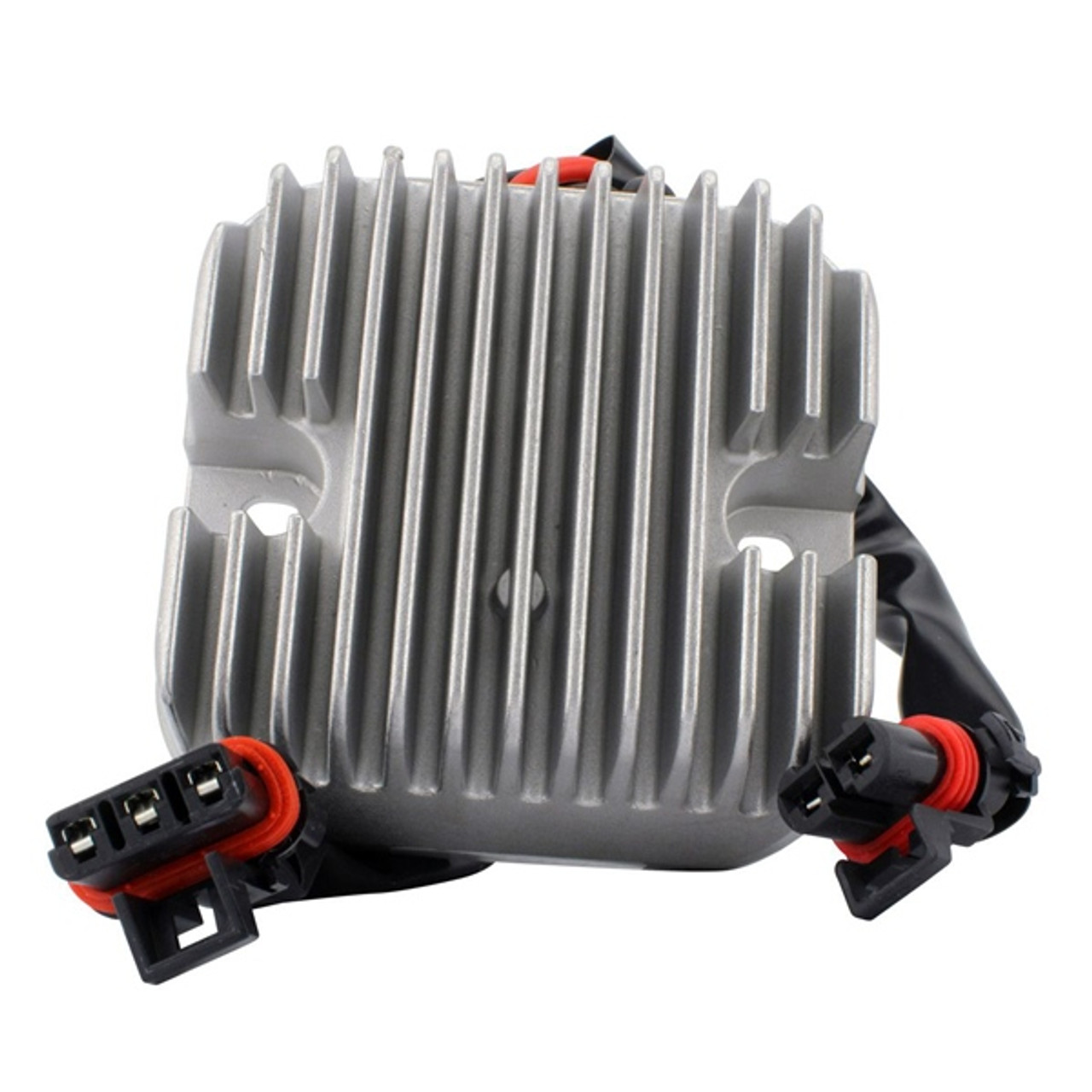

Stop burning your regulator rectifier! It is time to update or replace your voltage regulator with the advanced Mosfet type.It runs cooler than all OEM diode style regulators. In addition, this rectifier has overheat protection, rather than burn up it will simply turn off for a while and cool off.
- Direct replacement to your original unit
- No assembly required
- Higher grade of electric components
- Improved heat sink and charging capabilities
- The quality exceeds the OEM equipment
- All products shipped are tested
- One year limited warranty
Runs cooler: Runs much cooler than the traditional Shunt voltage regulator rectifier.
Saves gas: Less load on the stator, less work, less fuel is used and you save.
Regulated energy: The power charging your battery is steadier and smooth.
Extended battery life: Extends the battery’s life and cold cranking capacity.
More engine power: Removes stator load resulting in more engine power.
Optimized power: Optimize power delivery by switching the stator coils on or off.
Kimpex Data:
- Barcode: 779420297566
- Supplier Number: SF-020-007308
- Kimpex Catalog Number: 225911
Product Videos
Custom Field
Width (mm) 107
Length (mm) 112
Height (mm) 36
Number of wires 5
Wire length 220 mm
Number of connectors 2
Number of terminals 5
MM between fixation holes 83
Compatible Brand Fits Victory
Number 225911
