Product Description

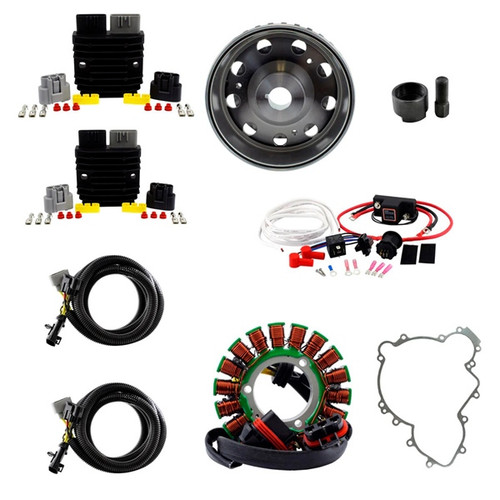

Ultimate reliability With a stock charging system, voltage regulators are consistently operating within 5% of their maximum capacity, leading to heat and stress related failure. With the RMSTATOR SPLYT system, both SERIES voltage regulators are operating with 40% overhead for long life and stable output. Better design Contrary to the original OEM stator that uses one three phase stator winding, the SPLYT stator contains two separate three-phase coil windings. Each of these windings then produces half of the power of the stator, lowering the temperature in each individual coil. Easy to install All parts use a Plug & Play design just like the original OEM configuration. No special tools or knowledge is needed to install this system. Harnesses included Wiring harnesses are included for easy plug-in connections between the stator, regulator, and battery. This ensures the best possible connections with brand new premium wire and terminals. This kit includes:- Dual output stator
- Two SERIES voltage regulators
- Two automotive grade relocation wiring harnesses with OEM-quality heavy-duty connectors
- Complete instructions for voltage regulator relocation
- RMSTATOR UTV Complete Dual Battery Isolator Connection and Metering Kit
Kimpex Data:
- Barcode: 882834179073
- Supplier Number: SF-900-008161
- Kimpex Catalog Number: 345599
Product Data:
- Compatible Brand: Fits Polaris
- Internal Diameter (mm): 53
- External Diameter (mm): 125
- Thickness (mm): 26
- Number of wires: 6
- Notes: Includes parts #225655; #225800 #285900; #345274; #345298
- Number: 345599
