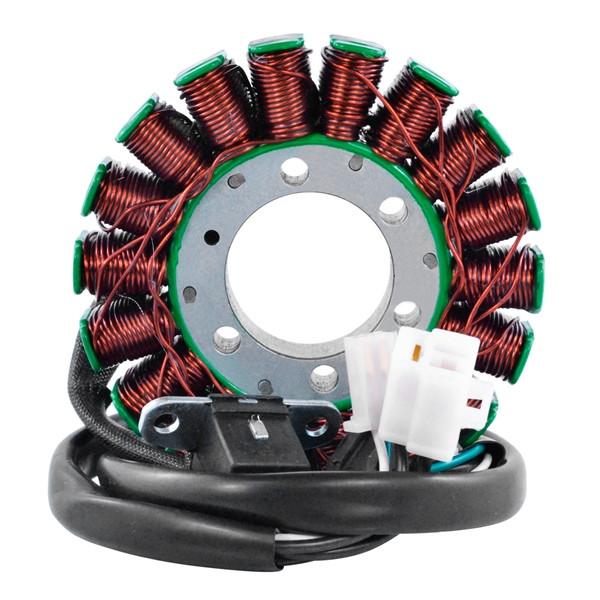

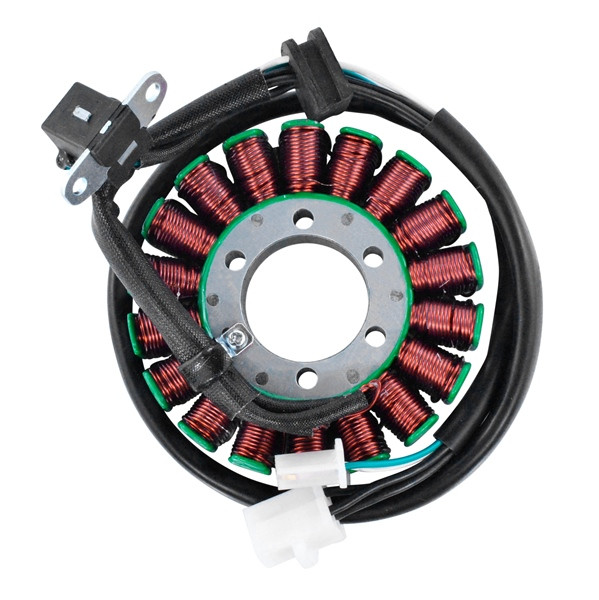

Product Description
- Direct replacement to your original unit
- Plug-and-play, direct fit, easy installation
- Highest grade lamination materials
- Highest grade copper windings, resistant to 200 degrees Celsius

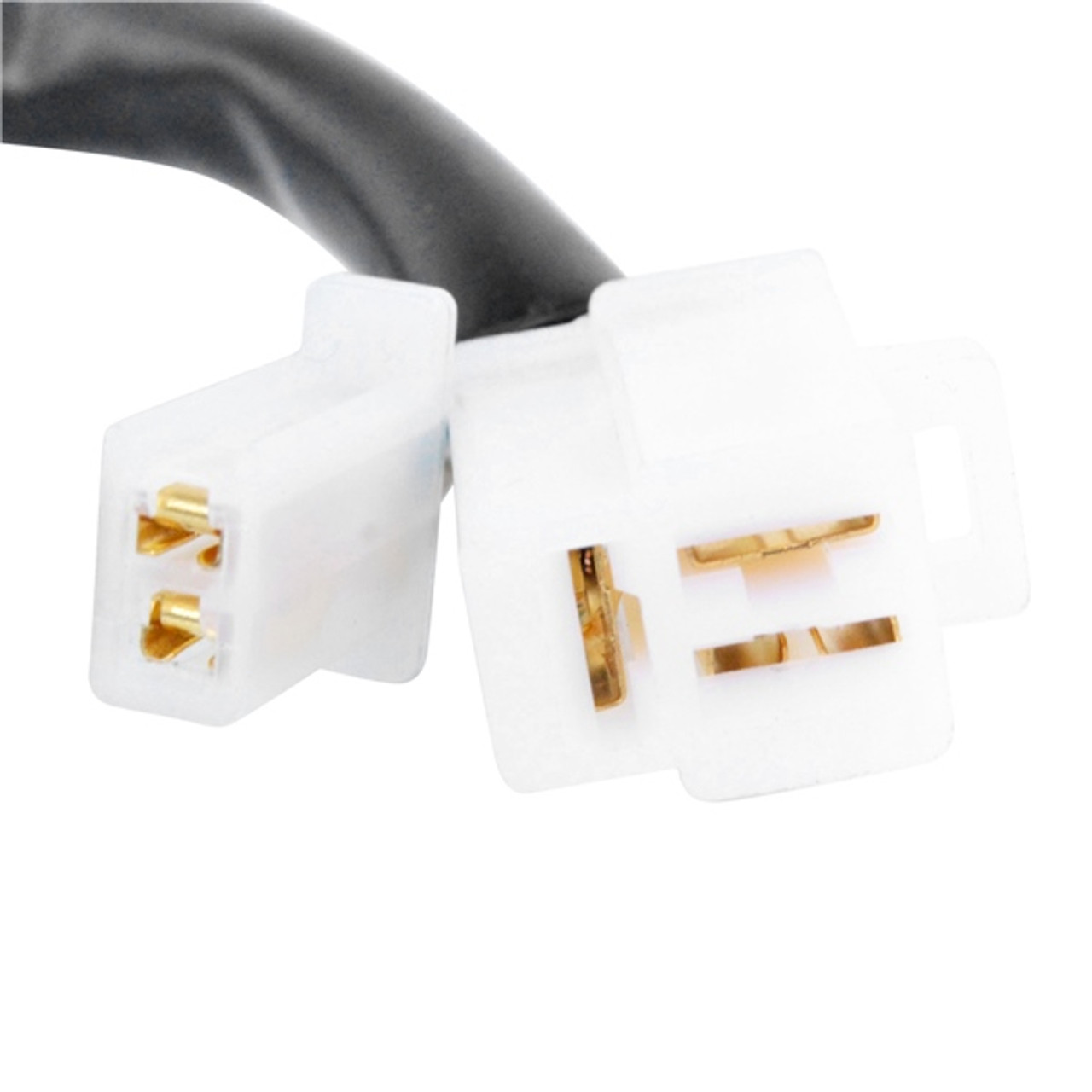

- Connector included
- Rubber grommet included
- All products shipped are tested
Kimpex Data:
- Barcode: 779421598068
- Supplier Number: SF-010-002169
- Kimpex Catalog Number: 225627
Product Data:
- Compatible Brand: Fits Suzuki
- Internal Diameter (mm): 38
- External Diameter (mm): 108
- Thickness (mm): 19
- Number of wires: 5
- Number of connectors: 2
- Number of terminals: 5
- Notes: The opposite connector is include (main harness side)
- Notes: Includes: Connectors
- Notes: Includes: Rubber grommet

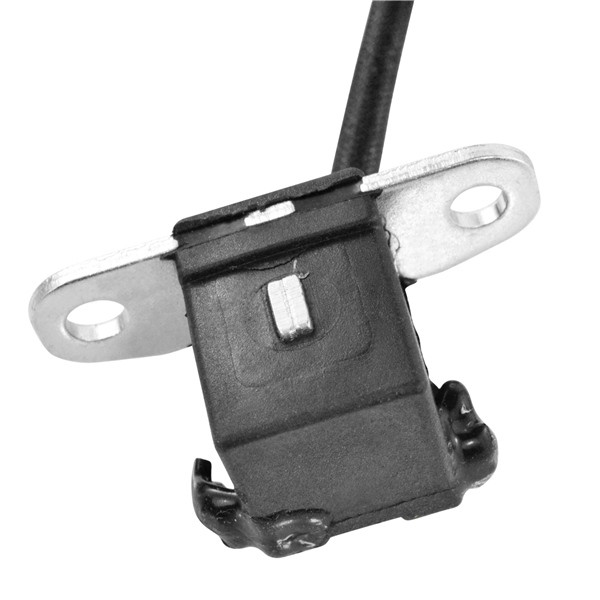

- Notes: Includes: Pick up pulsar
- Number: 225627
Product Videos
Custom Field
Compatible Brand Fits Suzuki
Internal Diameter (mm) 38
External Diameter (mm) 108
Thickness (mm) 19
Number of wires 5
Number of connectors 2
Number of terminals 5
Notes The opposite connector is include (main harness side)
Notes Includes: Connectors
Notes Includes: Rubber grommet
Notes Includes: Pick up pulsar
Number 225627
Kimpex-Category Moto (9B)
Make SUZUKI
Model SV650 ABS
Model SV650S ABS
Year 2009
Year 2008
Model V-Strom 650 ABS DL650A
Model V-Strom DL650A
Year 2007
Model SV650S
Model SV650
Year 2006
Year 2005
Year 2004
Year 2003
