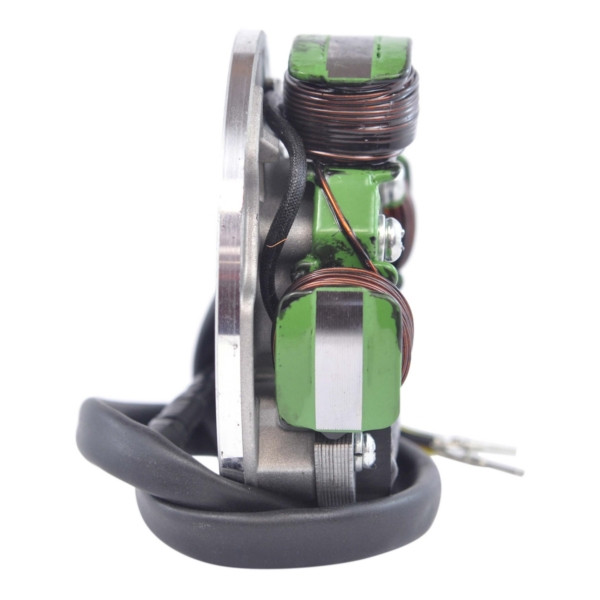

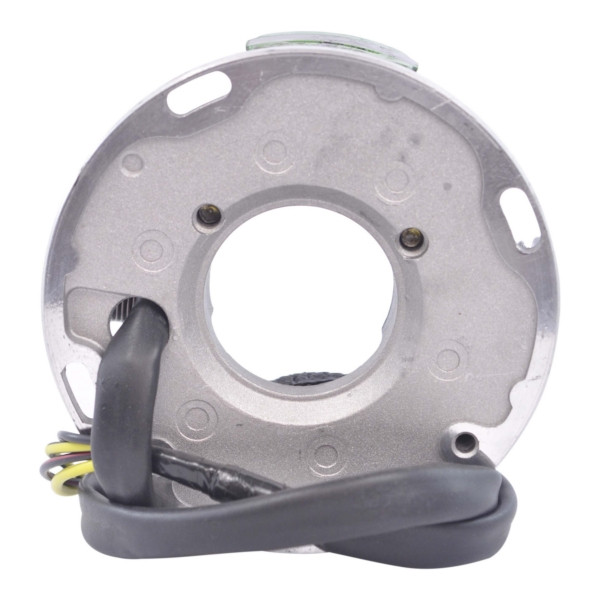

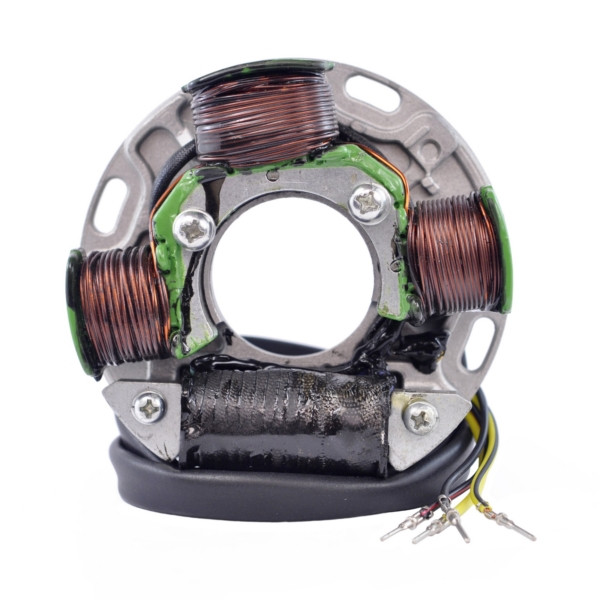

Name: Kimpex HD Stator N/A - 225014 - 225014
Brand: KimpexHD
SKU: 225014
Price: 266.39 CAD
Availability: InStock

Overview
Reviews

Product Description

Direct replacement to your original unit
Plug-and-play, direct fit, easy installation
Highest grade lamination materials
Highest grade copper windings, resistant to 200 degrees Celsius
Connector included
Rubber grommet included
All products shipped are tested

Note: Battery condition is extremely important. No stator can work correctly with a bad or weak battery. Always fully charge your battery before performing any charging system tests or replacing parts. If there is any doubt, have the battery load tested or replaced.

Kimpex Data:

Barcode: 779420176182
Supplier Number: SF-010-000567
Kimpex Catalog Number: 225014

Product Data:

Compatible Brand: N/A
Internal Diameter (mm): 40
External Diameter (mm): 110
Thickness (mm): 27
Number of wires: 4
Number of connectors: N/A
Number of terminals: 4
Notes: N/A
Number: 225014

Product Videos

Custom Field

Compatible Brand N/A

Internal Diameter (mm) 40

External Diameter (mm) 110

Thickness (mm) 27

Number of wires 4

Number of connectors N/A

Number of terminals 4

Notes N/A

Number 225014

Kimpex-Category Marine (9C)

Make SEA-DOO

Model Sportster 720

HP 720

Year 1997

Year 1996

Model Sportster 650

Model Explorer 720

Model Explorer 650

HP 650

Year 1995

Model XP 720

Model SPX 720

Model SP 720

Model HX 720

Model GTS 720

Year 1999

Year 2000

Model GTI LE 720

Year 1998

Year 2004

Year 2003

Year 2002

Model GTI 720

Year 2005

Year 2001

Model GSI 720

Model GS 720

Model SPX 650

Model GTX 650

Model SPI 580

HP 580

Model SP 580
