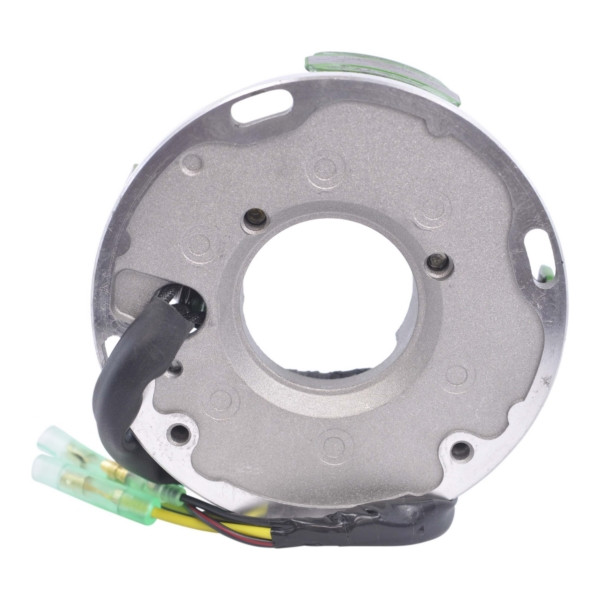

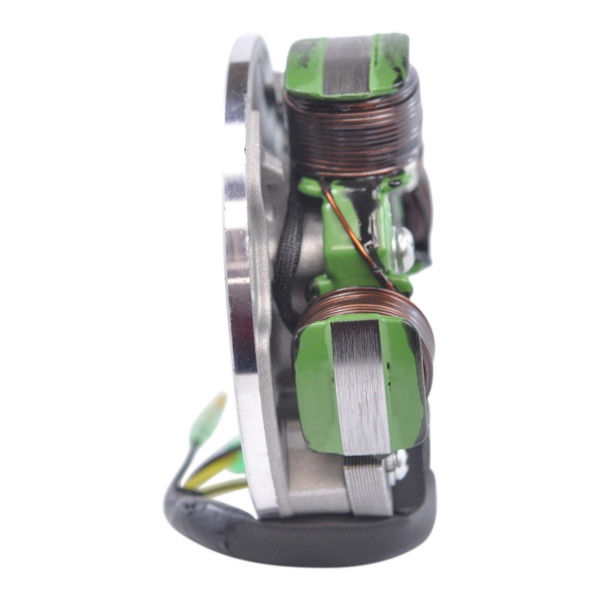

  • Kimpex HD Stator N/A - 225017 - 225017
  • Kimpex HD Stator N/A - 225017 - 225017
  • Kimpex HD Stator N/A - 225017 - 225017

    • Kimpex HD Stator N/A - 225017 - 225017

    KimpexHD

    $266.39
    (No reviews yet) Write a Review
    SKU:
    225017
    UPC:
    779423480583
    Adding to cart… category.add_cart_announcement

    Product Description

    • Direct replacement to your original unit
    • Plug-and-play, direct fit, easy installation
    • Highest grade lamination materials
    • Highest grade copper windings, resistant to 200 degrees Celsius
    • Connector included
    • Rubber grommet included
    • All products shipped are tested
    Note: Battery condition is extremely important. No stator can work correctly with a bad or weak battery. Always fully charge your battery before performing any charging system tests or replacing parts. If there is any doubt, have the battery load tested or replaced.

    Kimpex Data:
    • Barcode: 779423480583
    • Supplier Number: SF-010-000570
    • Kimpex Catalog Number: 225017


    Product Data:

    • Compatible Brand: N/A
    • Internal Diameter (mm): 40
    • External Diameter (mm): 107
    • Thickness (mm): 25
    • Number of wires: 4
    • Number of connectors: 4
    • Number of terminals: 4
    • Notes: N/A
    • Number: 225017

    Product Videos

    Custom Field

    Kimpex-Category Marine (9C)
    Make SEA-DOO
    Model SP 580
    Model GTX 580
    HP 580
    Year 1993
    Model GTS 580
    Model XPI 650
    HP 650
    Year 1994
    Year 1992
    Year 1992
    Model SPI 580
