Product Description
196-Pieces Connector Kit Replacement for Sumitomo 1-Way / 2-Way / 4-Way / 6-Way MT Series & TS SeriesComplete replacement connector kit for Sumitomo MT Series & TS Series OEM connectors. These connectors are perfectly suited for powersport vehicle usage in harsh conditions. Manufactured especially for waterproof connection. This 090 type series supports many application regarding control circuits and low power circuits. The connectors are manufactured to Sumitomo specs for a 100% match with your current connectors. Comes with 5mm & 6mm pitches between terminals.

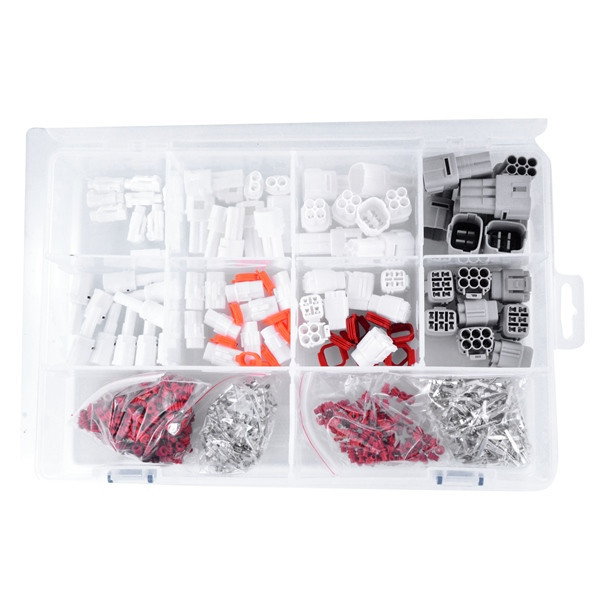

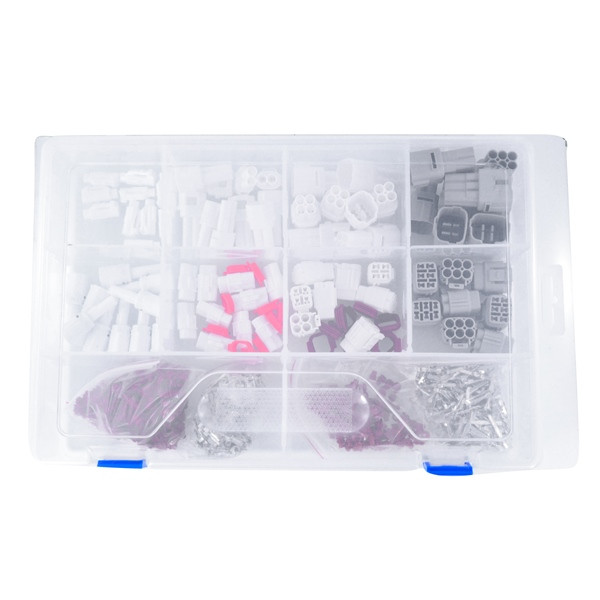

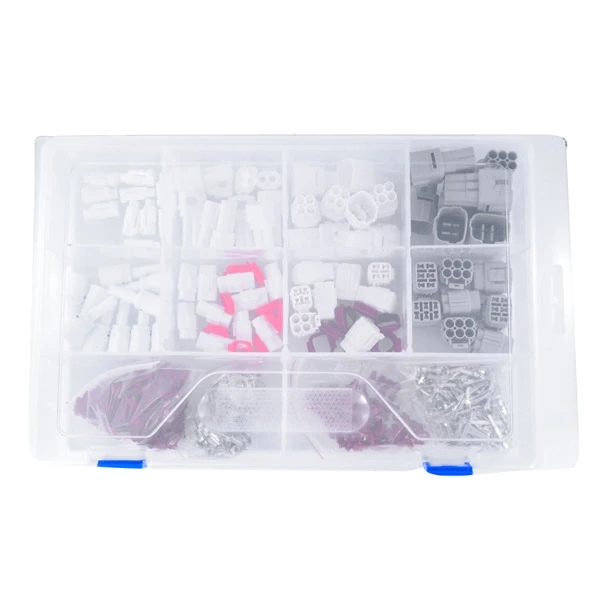

This kit includes:
- 10 x 1-Way Male Connector Receptacle Housing Kit - Natural (P/N: 6187-1171)
- 10 x 1-Way Female Connector Plug Housing Kit - Natural (P/N: 6180-1181)
- 10 x 2-Way Male Connector Receptacle Housing Kit - Natural (P/N: 6187-2171)
- 10 x 2-Way Female Connector Plug Housing Kit - Natural (P/N: 6180-2181)
- 8 x 4-Way Male Connector Receptacle Housing Kit - Natural (P/N: 6188-0004)
- 8 x 4-Way Female Connector Plug Housing Kit - Natural (P/N: 6180-4771)
- 8 x 6-Way Male Connector Receptacle Housing Kit (P/N: 6188-0209)
- 8 x 6-Way White Female Connector Plug Housing Kit (P/N: 6189-0368)
One year limited warranty
Note : All connectors includes the terminals and the wire rubber seals.
Kimpex Data:
- Barcode: 779420179046
- Supplier Number: SF-953-004095
- Kimpex Catalog Number: 225544
Product Videos
Custom Field
AWG N/A
Material N/A
Unit per package 196
