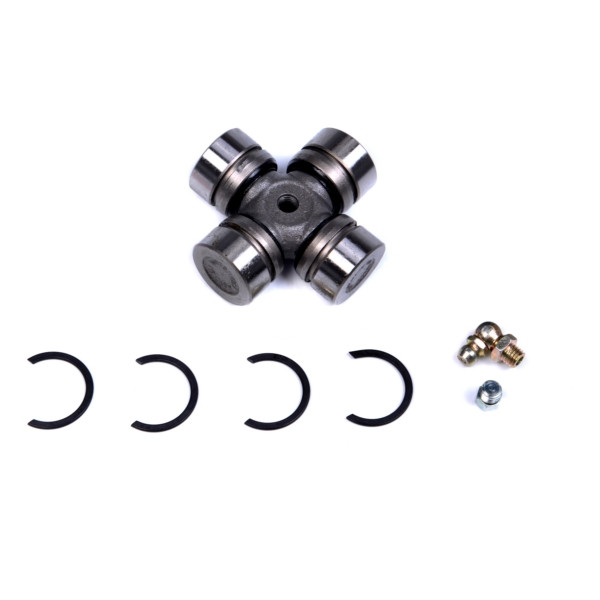

  • Kimpex HD Universal Joint - 327359
  • Kimpex HD Universal Joint - 327359

    • Kimpex HD Universal Joint - 327359

    KimpexHD

    $33.29
    (No reviews yet) Write a Review
    SKU:
    327359
    UPC:
    779420805419
    Tip length:
    0.945"
    Total length:
    1.624"
    Zerk:
    Yes
    Snap ring included:
    Yes
    Position:
    Varies by model
    Model number:
    19-1004-KIMP
    Adding to cart… category.add_cart_announcement

    Product Description

    • U Joints are cold forged from SCM-415 steel, precision ground journals are case hardened to HRC58-61
    • U Joints are pre greased with hi-temp Lithium Complex 3 grease.
    • Bearing cups feature a Quad lip seal to keep contamination out and grease in.
    • Centrally located grease zerk and grease channels in bearing cup evenly distribute grease.
    • Kits include cap plug to eliminate grease zerk for low clearance applications.
    • Honda Yoke assemblies have upgraded cross diameters from 17mm to 19mm.
    • Honda yoke assemblies feature stainless steel clamps and hi quality neoprene rubber boots for long life and abrasion resistance.

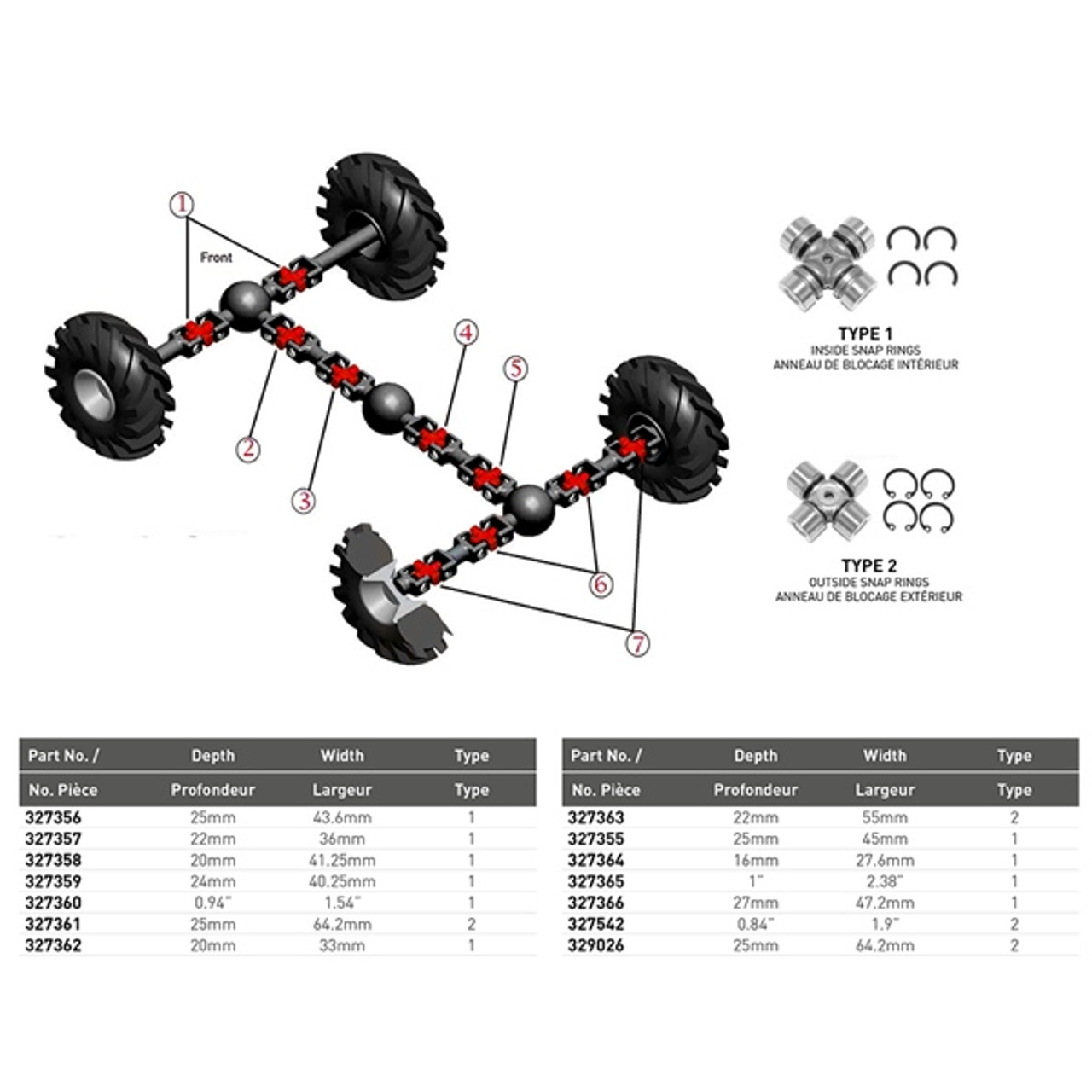

    Notes for utility Models:
  • A) Six Wheel vehicules middle drive shaft use the same U-Joints as rear drive Shaft (Location 4 & 5)
  • B) Middle axle use the same U-Joints as rear axle (Location 6 & 7)
  • C) Utility vehicules with middle U-Joints on front drive shaft use same U-Joints as front (Location 2)
    • In order to know the exact position of every joint made for your ATV model, refer to the charter in Kimpex ATV & UTV online at the Axles & Universal CV Boots section.

    Kimpex Data:
    • Barcode: 779420805419
    • Supplier Number: 19-1004-KIMP
    • Kimpex Catalog Number: 327359

    Product Videos

    Custom Field

    Tip length 0.945"
    Total length 1.624"
    Zerk Yes
    Snap ring included Yes
    Position Varies by model
    Model number 19-1004-KIMP
