Kimpex HD Universal Joint - 327361

Name: Kimpex HD Universal Joint - 327361
Brand: KimpexHD
SKU: 327361
Price: 41.39 CAD
Availability: InStock

KimpexHD

$41.39

(No reviews yet) Write a Review

SKU:: 327361
UPC:: 779420805396

Overview
Reviews

Product Description

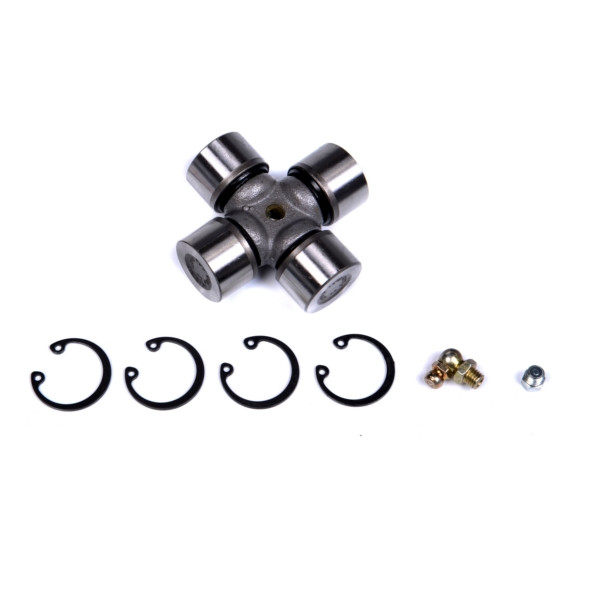

U Joints are cold forged from SCM-415 steel, precision ground journals are case hardened to HRC58-61
U Joints are pre greased with hi-temp Lithium Complex 3 grease.
Bearing cups feature a Quad lip seal to keep contamination out and grease in.
Centrally located grease zerk and grease channels in bearing cup evenly distribute grease.
Kits include cap plug to eliminate grease zerk for low clearance applications.
Honda Yoke assemblies have upgraded cross diameters from 17mm to 19mm.
Honda yoke assemblies feature stainless steel clamps and hi quality neoprene rubber boots for long life and abrasion resistance.

Notes for utility Models:

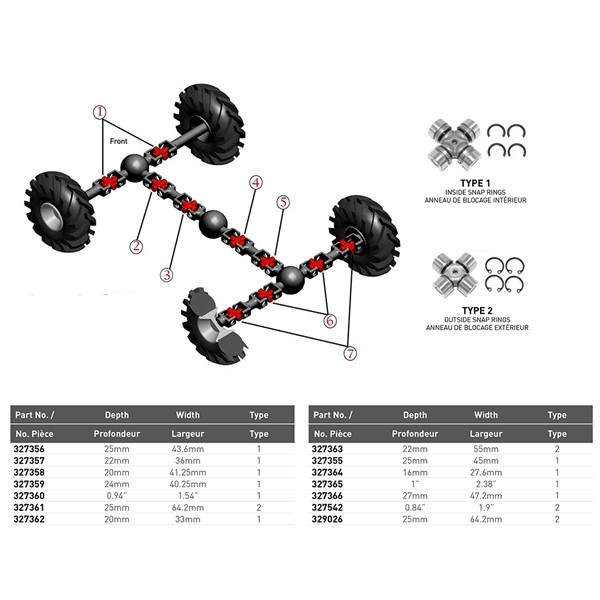

A) Six Wheel vehicules middle drive shaft use the same U-Joints as rear drive Shaft (Location 4 & 5)

B) Middle axle use the same U-Joints as rear axle (Location 6 & 7)

C) Utility vehicules with middle U-Joints on front drive shaft use same U-Joints as front (Location 2)

In order to know the exact position of every joint made for your ATV model, refer to the charter in Kimpex ATV & UTV online at the Axles & Universal CV Boots section.

Kimpex Data:

Barcode: 779420805396
Supplier Number: 19-1006-KIMP
Kimpex Catalog Number: 327361

Product Data:

Tip length: 0.984"
Total length: 2.528"
Zerk: Yes
Snap ring included: Yes
Position: Varies by model
Model number: 19-1006-KIMP

Product Videos

Tip length

Tip length 0.984"

Total length 2.528"

Zerk Yes

Snap ring included Yes

Position Varies by model

Model number 19-1006-KIMP

Kimpex-Category ATV (9E)

Make CAN-AM (BRP)

Make POLARIS

Model Outlander 570 MR

Model RZR PRO XP 4 Ultimate EFI

Year 2022

Year 2023

Model RZR PRO XP 4 Premium EFI

Model RZR PRO XP 4 Sport EFI

Model Outlander MAX 570 XT

Model Outlander MAX 570 DPS

Model Outlander MAX 570

Model Outlander 570 Xmr DPS

Model Outlander 570 XT

Model Outlander 570 DPS

Model Outlander 570

Model RZR PRO XP Ultimate EFI

Model RZR PRO XP Sport EFI

Model RZR PRO XP Premium EFI

Model Outlander 570 Hunting Edition

Year 2021

Year 2019

Model Outlander 850

Year 2018

Year 2016

Model Commander MAX 800R DPS

Model Commander 1000

Model Outlander 400

Model Traxter 650

Year 2015

Year 2004

Year 2020

Model Outlander 650 XT

Model Outlander MAX 850 North Edition

Model Outlander 1000R Xxc

Model Renegade 850 Xxc

Model Renegade 850

Model Renegade 570 Xmr

Model Renegade 570

Model Renegade 1000R Xxc

Model Renegade 1000R Xmr

Model Outlander MAX 850 XT-P

Model Outlander MAX 850 XT

Model Outlander MAX 1000R XT

Model Outlander MAX 1000R XT-P

Model Outlander MAX 1000R LTD

Model Outlander 850 XT-P

Model Outlander 850 XT

Model Outlander 850 DPS

Model Outlander 650 DPS

Model Outlander 650 Xmr DPS

Model Outlander 1000R XT-P

Model Outlander 650

Model Outlander 1000R XT

Model Outlander 1000R Xmr

Year 2017

Model Outlander 1000R DPS

Model Renegade 1000R

Model Commander 800R

Model Commander 800R DPS

Model Commander 800R XT

Model Commander 1000R XT

Model Commander 1000R DPS

Model Commander MAX 1000 DPS

Model Outlander 850 Xmr

Model Outlander 800 XT-P

Model Renegade 800 Xxc

Model Outlander 800 XT

Model Outlander 1000 XT-P

Model Outlander 1000 XT

Model Outlander 500 DPS

Model Outlander MAX 500 DPS

Model Outlander MAX 500 XT

Model Outlander MAX 650

Model Outlander 800

Model Outlander 800 DPS

Model Outlander MAX 800 DPS

Model Outlander MAX 800 XT

Model Outlander MAX 800 XT-P

Model Outlander 1000 DPS

Model Outlander MAX 1000 DPS

Model Outlander MAX 1000 LTD

Model Renegade 500

Model Renegade 800R

Make JOHN DEERE

Model Trail Buck 650 EXT

Model Trail Buck 650 EX

Model Trail Buck 650

Model Quest 500 4x4 XT

Year 2003

Year 2002

Make CFMOTO

Year 2014

Model Tracker 800

Model Outlander MAX 650 XT

Model Outlander MAX 500

Model Outlander MAX 400 XT

Model Outlander MAX 400

Model Outlander 500 XT

Model Outlander 500

Model Outlander 400 XT EFI

Model Outlander 1000 Xmr

Model Commander 1000 XT-P w open diff

Model Commander 1000 XT-P

Model Commander MAX 1000 XT

Year 2013

Model Commander 1000R LTD

Model Commander 800 XT

Model Commander 1000 X

Model Commander 1000 LTD

Model Commander 1000 XT

Model Maverick 1000

Model Maverick 1000 Xrs

Year 2011

Model Outlander MAX 650 XT-P

Model Outlander MAX 800 LTD

Model Outlander 800 Xxc

Model Outlander 800R Xmr

Year 2005

Year 2006

Year 2012

Year 2010

Model Renegade 800R X

Year 2009

Year 2008

Model Renegade 800

Year 2007

Model Outlander MAX 800

Model Traxter 500 XL 5 Speed Semi-Automatic

Model Traxter MAX 650

Model Traxter 500 4x4 Automatic

Model Traxter 500 5 Speed Automatic

Model Quest MAX 650 4x4

Model Quest 650 4x4 XT

Model Quest 650 4x4

Model Quest 500 4x4
