Product Description
Piston and Ring Installation:- Remember never install chrome rings in chrome plated, nikasil or electrofusion cylinders.
- Prior to installation, fit each ring into the cylinder bore and measure the end gap to eliminate the chance of ring butting. Acceptable gap range is .010 to .025. If gap is inadequate, carefully file to the recommended specs. See “Piston Clearance Guide”. Clean and lubricate all moving parts with 10W30 oil.
- Install pistons with the arrow pointing to the exhaust side of the engine (except for few models Polaris where the arrow points toward the magneto side).
- Install circlips carefully without forcing, bending or turning them. Be sure they seat properly in the grooves and position the openings down.

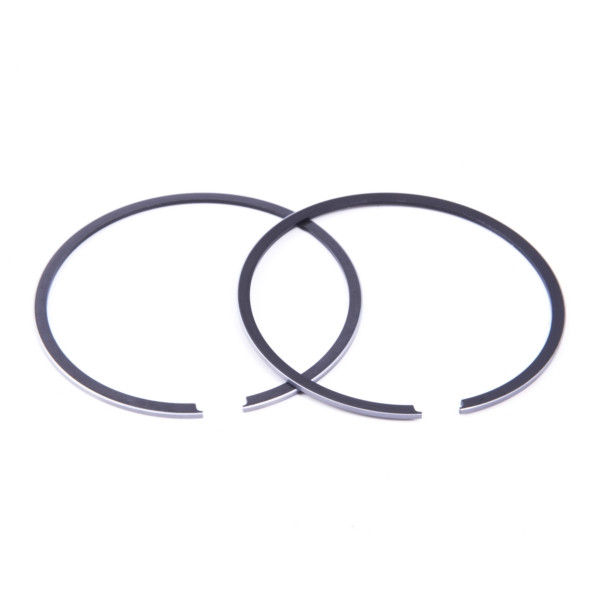

- Install rings onto matching pistons. Lubricate and check to be sure the end gaps can be completely closed around the locating pins.
- Install new base gaskets, compress rings and carefully slide the cylinders down into position. Before installing the cylinder heads, rotate the crankshaft by hand to make sure pistons and rings move freely into cylinder.
Kimpex Data:
- Barcode: 779422113833
- Supplier Number: R09-711
- Kimpex Catalog Number: R09-711
Product Data:
- Compatible Brand: Fits Polaris
- Displacement: 488 cc
- Bore - Standard: 71.98 mm
- Bore - Oversize: Standard
- Cylinders: 2
- Engine type: 2-Strokes
- Number: R09-711
Product Videos
Custom Field
Compatible Brand Fits Polaris
Displacement 488 cc
Bore - Standard 71.98 mm
Bore - Oversize Standard
Cylinders 2
Engine type 2-Strokes
Number R09-711
Kimpex-Category Snow (9A)
Make POLARIS
Model Indy 500 L/C 121"
Year 2002
Year 2001
Year 2006
Year 2005
Model WideTrak LX
Year 2015
Year 2014
Year 2013
Year 2012
Model 500 SKS
Model Indy Wide Trak 156"
Year 1995
Year 1993
Model 500 SP
Year 1992
Year 1989
Model Indy Wide Trak LX 156"
Model Indy Wide Trak LX ES/R L/C 156"
Year 1997
Year 2000
Year 1996
Year 1994
Year 1991
Model Indy Trail Wide Trak 488 F/C 156"
Model Indy Storm 800 SKS L/C 133,5"
Model Indy Storm 800 L/C 121"
Year 1990
Model Indy 650 SKS L/C 133,5"
Model Indy 650 L/C 121"
Model Indy 500 Special L/C 121"
Model Indy 500 Special EFI L/C 121"
Model Indy 500 SKS L/C 133,5"
Model Indy 500 SKS L/C 133"
Model Indy 500 SKS EFI L/C 133,5"
Model Indy 500 SPX EFI L/C
Year 1998
Model Indy 500 Carb L/C 121"
Model Indy 500 Classic Touring ES/R L/C 133,5"
Model Indy 500 Classic L/C 121"
Model Indy 500 RMK L/C 133,5"
Model Indy 500 Edge L/C 121"
Year 1999
Model Indy 500 Classic ES/R L/C 121"
Model 500 WideTrak LX L/C 156"
Year 2011
Year 2010
Model Wide Trak LX 500 ES/R L/C 156"
Year 2008
Year 2007
Year 2004
Year 2003
Model Indy 500 EFI L/C 121"
Model Indy 500 Classic Touring ES/R L/C 133"
Year 2009
Model Indy 500 Classic Deluxe 133,5"
Model Indy 500 Classic Edge ES/R L/C 121"
Model Indy 500 Edge 121"
Model Indy 500 RMK EFI L/C 133,5"
Model 500 Classic Edge ES/R L/C 121"
Kimpex-Category ATV (9E)
Model Xplorer 250 4X4 2 stroke
Model Trail Blazer 250 2X4
