Product Description
Piston and Ring Installation:- Remember never install chrome rings in chrome plated, nikasil or electrofusion cylinders.
- Prior to installation, fit each ring into the cylinder bore and measure the end gap to eliminate the chance of ring butting. Acceptable gap range is .010 to .025. If gap is inadequate, carefully file to the recommended specs. See “Piston Clearance Guide”. Clean and lubricate all moving parts with 10W30 oil.
- Install pistons with the arrow pointing to the exhaust side of the engine (except for few models Polaris where the arrow points toward the magneto side).
- Install circlips carefully without forcing, bending or turning them. Be sure they seat properly in the grooves and position the openings down.

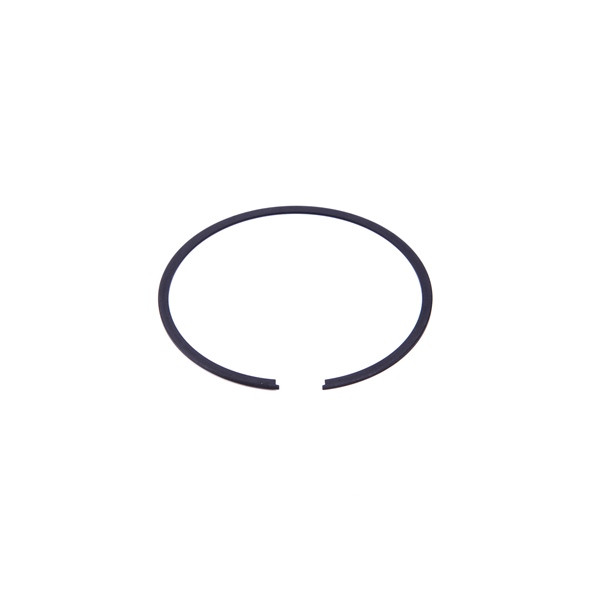

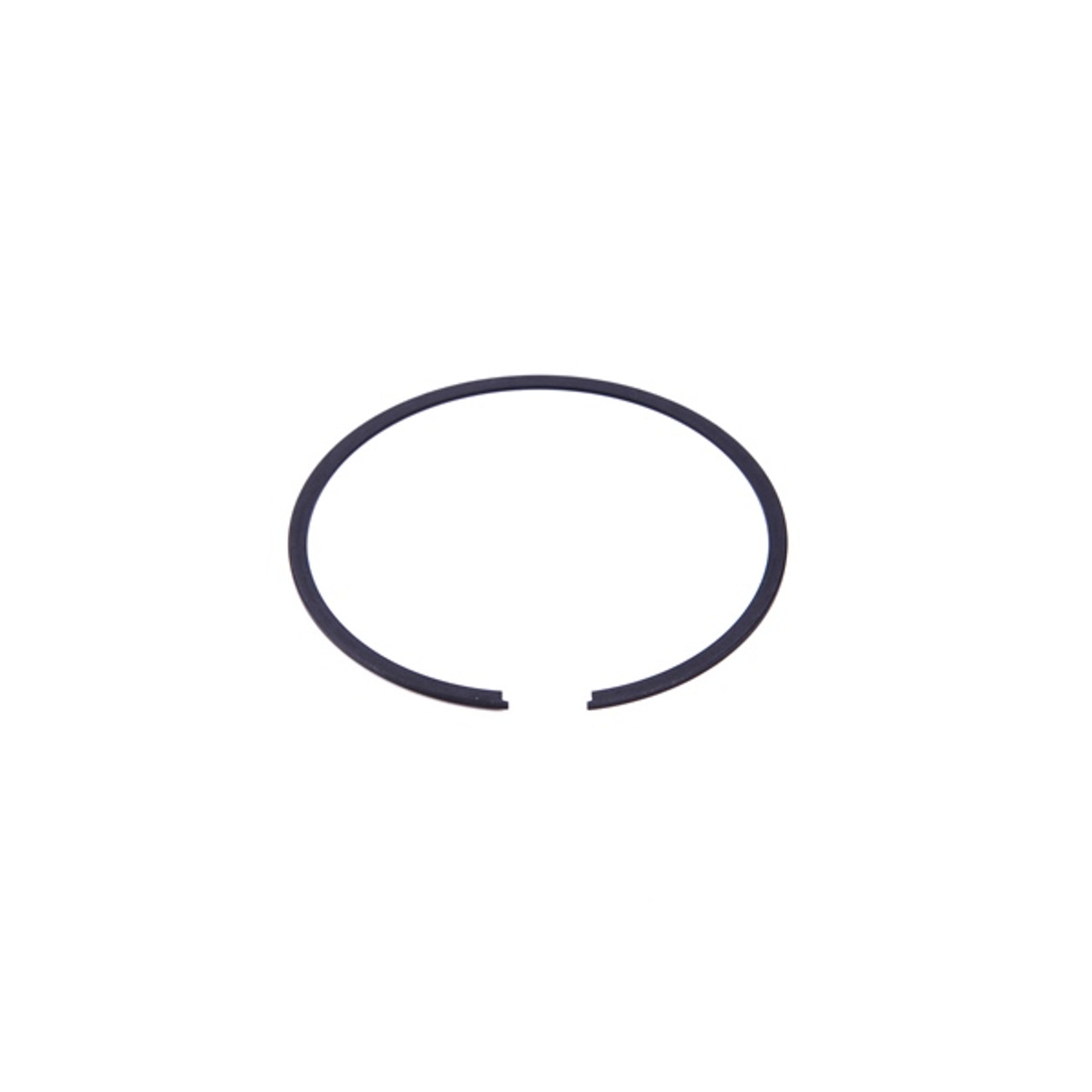

- Install rings onto matching pistons. Lubricate and check to be sure the end gaps can be completely closed around the locating pins.
- Install new base gaskets, compress rings and carefully slide the cylinders down into position. Before installing the cylinder heads, rotate the crankshaft by hand to make sure pistons and rings move freely into cylinder.
Kimpex Data:
- Barcode: 779422115011
- Supplier Number: R09-825
- Kimpex Catalog Number: R09-825
Product Data:
- Compatible Brand: Fits Yamaha
- Displacement: 493 cc
- Bore - Standard: 68 mm
- Bore - Oversize: Standard
- Cylinders: 2
- Engine type: 2-Strokes
- Number: R09-825
Product Videos
Custom Field
Compatible Brand Fits Yamaha
Displacement 493 cc
Bore - Standard 68 mm
Bore - Oversize Standard
Cylinders 2
Engine type 2-Strokes
Number R09-825
Kimpex-Category Snow (9A)
Make YAMAHA
Model VMAX 500 XTC
Model VMAX 500 XTC Reverse L/C
Year 1998
Model VMAX 500 XTC Electric Start L/C
Year 1997
Model VMAX 500 XTC Deluxe L/C
Model VMAX 500 XTR ES/R L/C 121"
Model VMAX 500 XTC L/C 121"
Model VMAX 500 XT L/C 121"
Year 1996
Model VMAX 500 SX L/C 121"
Model VMAX 500 ST L/C 136"
Year 1999
Model VMAX 500 LE ES L/C 121"
Year 1994
Year 1995
Model VMAX 500 Deluxe 121"
Year 2001
Year 2000
Model VMAX 500 Deluxe ES/R L/C 121"
Model VMAX 500 Deluxe ES/R L/C 136"
Model VMAX 500 121"
Model VMAX 500 121"
Model VMAX 500 L/C 121"
Model VMAX 500 L/C 121"
Model Venture 500 136"
Model Venture 500 ES/R L/C 136"
Model SX 500 121"
