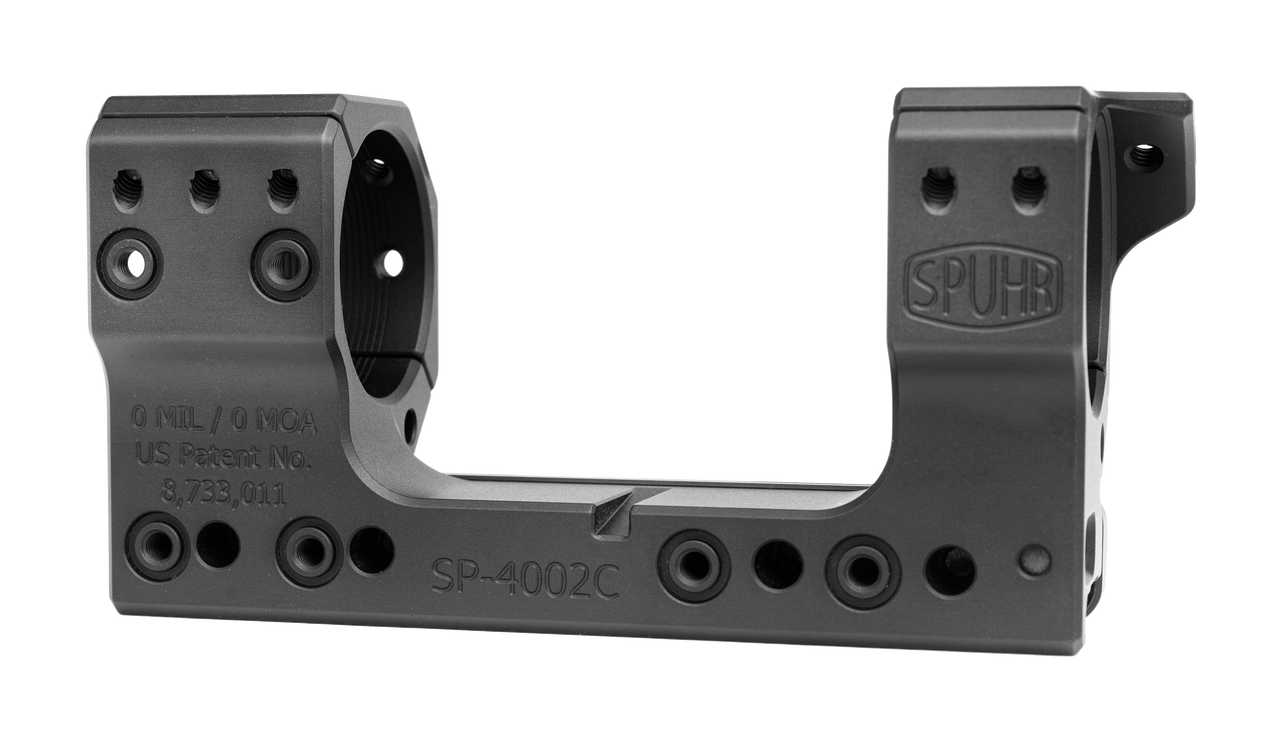

Product Description
The IDEAL SCOPE MOUNT SYSTEM series of mounts feature seven sets of interfaces to attach any of more than 40 different accessories and has a bubble level integrated in the rear plane of the mount body to prevent canting of the rifle. The rings are diagonally cut for increased visibility of the elevation and windage turrets (US Patent 8,733,011).
The mounts are machined from billet 7000 series aluminum and all aluminum parts are hardcoat anodized. The Torx 20 ring and clamping screws are zinc-nickel coated for corrosion resistance and come pre-waxed from the factory to ensure proper torque values. The mount is shipped with a manual and a “wedge” leveling key.
Features:
- Precision machined from a solid billet of 7075 T651 aluminum
- Rings cut at a 45° angle – prevents the screws from interfering with the adjustment knobs
- Grooves on the ring’s interior contact surfaces – allows adhesive to be used to better secure the scope in place
- Seven sets of interfaces – allow the user to attach over 40 different accessories for virtually unlimited customization options
Specifications:
- Rings: 34 mm
- Tilt: 0 MIL/MOA
- Height: 38 mm/1.5”
- Length: 120 mm/4.72” (body) / 130 mm/5.12” (OAL)
- Weight: 256 g/9.0 oz
- Rail/Type: Picatinny
NOTE: The SP-4002C is designed for use with 56 mm objectives on rifles with MIL-STD-1913 or STANAG 4694 rails and is especially suitable for extended Picatinny rails combined with night vision equipment. The SP-4002C FDE will fit most 34 mm scope tubes including scopes with extended erector housings.
